Product Details:
|
| Place Of Original: | China | Condition: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Voltage: | 380V 50HZ |
| Warranty Time: | 1 Year | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineer Availiable To Service | Certificate: | CE |
| High Light: | CSA Plastic Granulator Machine,Plastic Granulator Machine 100kg/H,25L/D Plastic Granulator Machine |
||
Small Plastic Granulator Machine ,PP PE Granules Machine With Single Screw Extruder
Quick Detail:
Process flow of Plastic pelletizing machine :
Convey feeder→ Extruding machine→ Die-head and High speed screen exchanger→ water-ring pelletizing machine (or strand cutting)→Dewatering machine→ Vibrating sieve→ Air conveying Blower → Storage silo
Feature and Function of pelletizing machine :
There are noodle type and water ring type pelletizing line,recycling PP PE film bags,any other profile ,make them into pellets.
Description PP PE plastic granulator machine:
1. The pp pe plastic granulator machine compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step.applied in the plastics recycling and pelletizing process.
2. SJ series system is a reliable and efficiency solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
3. The complete process of this waste plastic recycling machine is belt conveyer - wet crusher - screw loader - friction washer - float washer - squeezing pelletizer - pelletizing line. The output could be 300~800kg/h. For dirty material, the clients will need more washing machine for cleaning the material. According to clients workshop, this plastic recycling machine could be arranged as "L" or "U" shape to save space.
|
Modle
|
Main motor power(kw)
|
Screw dia(mm)
|
L/D
|
Capatity(kg/h)
|
|
SJ-65
|
22-30
|
65
|
25-34
|
60-100
|
|
SJ-80
|
45-55
|
80
|
25-34
|
100-150
|
|
SJ-100
|
55-75
|
100
|
25-34
|
120-200
|
|
SJ-120
|
75-90
|
120
|
25-34
|
200-350
|
|
SJ-150
|
90-110
|
150
|
25-34
|
300-500
|
Applications:
It is widely used in recycling PP PE films and bags, such as LLDPE agriculture film, LDPE/LLDPE films, PE,PP bags, PP woven bags, jumbo bags and so on. It include plastic crushing and washing machine, squeezing pelletizer and plastic pelletizing machine. It will make granules directly from waste plastic plastic material. With proper design, this line can also recycle plastic basket, plastic bucket, plastic pallet, jerry cans and so on.
Competitive Advantage:
Easy to operate
Long service time
High quality

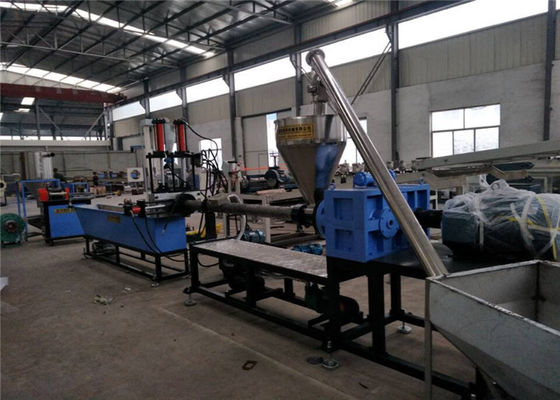

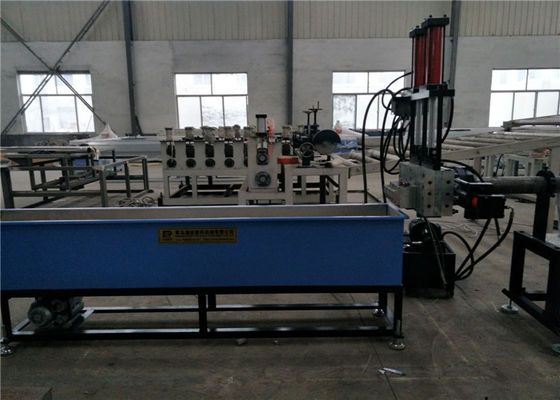

Machine display:
