Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ80X156 |
|---|---|---|---|
| Screw Design: | Double Screw | Screw Material: | 38Cor Moaia |
| Voltage: | 380V 50HZ | Warranty Time: | 1 Year |
| Condition: | New | Certificate: | CE Certificate |
| Motor Brand: | Siemens | Automatic Grade: | Fully Automatic |
| High Light: | Advertising WPC Board Making Machine,Double Screw WPC Board Extrusion Line,350kg/H WPC Board Extrusion Line |
||
PVC Advertising Board Production Line , WPC Board Making Machine , WPC Board Extrusion Line
Description of plastic board production line:
1. Work flow
PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker
2. With PVC, calcium powder and other additives, to produce foam board. It consists of conical twin screw extruder, mold, sizing cooling platform,cooling bracket, traction machine, cutting machine, conveyor and stacker, etc.
3. The line I use the original wood-plastic technology companies and formula. Plates can be based on different sections, according to the different uses of sheet metal, product design different proportions.
4. Introduction
| Power supply | 380V,3 phase,50HZ |
| Raw material | PVC, Caco3 and other additives |
| Cycle time | reused for minimum 20 times |
| Width of final product | Up to1220mm |
| Thickness of final product | 5-30mm |
| Max Capacity | 350kg/hour |
| Manpower | 3-4 persons/shift |
| Machine Dimension | 22*3*3m |
| Power installed/actual consumption | 150kw/ 100kw |
| Model | SJSZ80/156 | SJSZ92/188 | SJSZ80/156, SJ65/132 | SJP92/32 |
| Product width mm | 1220 | 1600 | 1600-2050 | 2050 |
| Product thickness mm | 3-20 | 5-30 | 3-20 | 3-20 |
| Max. extrusion capacity Kg/h | 350 | 500 | 600 | 450 |
| Power of extruder KW | 75 | 110 | 120 | 75 |
Application:
It is widely used in home-decoration, like wall board, windowsill board, door board. It can also be used for packing and plates for logistics.
1. Strong and durable; Lightweight and easy to install; Not easy to scratch;
2. Will not rot, warp, delaminate, cup or twist;
3. Resistant to weather, shock and abrasion;
4. Salt water corrosion resistant;
5. Impervious to salts, insects and many chemicals, including some acids;
6. Doesn't mold; Can be worked just like wood;
7. Non-toxic; 100% recyclable; Fire-retardant (self-extinguishing);
8. Easy to clean; Virtually maintenance free;
Competitive advantages:
♦ Specified screw design and material application for high percentage CaCo3
♦ Speedy cooling forming die supports the production line with faster linear speed and higher efficiency;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
♦ Ability to provide the customized plastic extrusion solutions.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines:18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru......

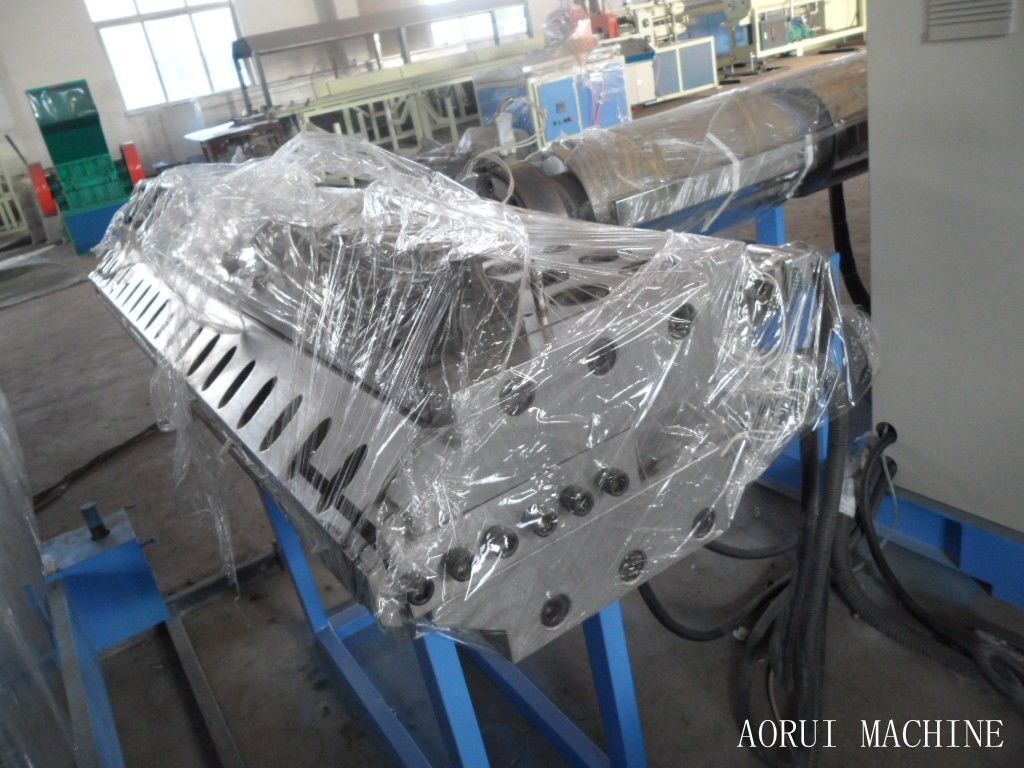

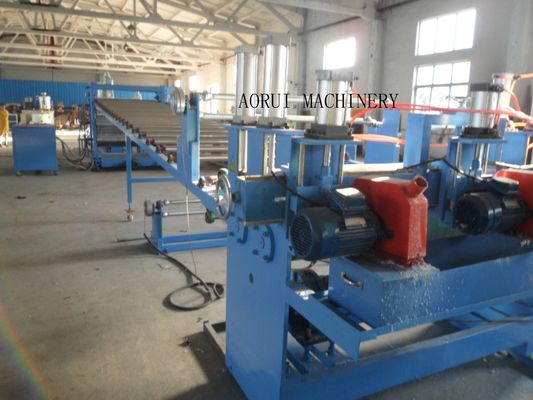

Machine display:
