Product Details:
|
| Condition: | New | Plastic Processed: | PVC WPC |
|---|---|---|---|
| Screw Design: | Double Screw | Screw Material: | 38Cr Moaia |
| Voltage: | 380V 50HZ | Warranty Time: | 1 Year |
| Machine Name: | Plastic Profile Machine | Place Of Original: | China |
| Automatic Grade: | Fully Automatic | ||
| High Light: | Hot Stamping Plastic Profile Extrusion Line,300mm Width PVC Profile Extruder,Laminated PVC Profile Extruder |
||
Plastic Profile Extrusion Line , PVC Profile Extruder , Window Profile Production Line
Description of pvc profile extrusion line:
1. Specified screw design for profile gets better plasticizing and more stable extrusion;
2. High-speed cooling forming die supports the production line with faster linear speed and higher efficiency;
3. Upper and lower belt is driven by the separate motor, which ensures stability and reliability of hauling;
4. Calibration table is adjustable by fore-back, left-right, up-down which brings simplified and convenient operation;
5. Saw cutting unit brings speedy and stable cutting with smooth incision; as to wide width board;
6. We also offer hauling and cutting combined unit which is a more compact and economical design.
7. The production line includes screw feeder, plastic extruder, mould, vacuum forming table, haul off unit, cutting machine, stacker.Auxiliary equipments: mixer, crusher, pulverizer, lamination machine, hot stamping machine, printer and so on.
Features: High filing material, even plasticizing, lower percentage of additive material are needed, stable production, and easy operation.
Technical parameter of pvc profile making machine:
| Extruder model | SJZ65/132 | SJZ80/156 |
| Motor power | 37 | 55 |
| Screw diameter | 65/132 | 80/156 |
| Screw rotation speed | 34.7 | 34.7 |
| Output capacity(PVC) | 150-250 | 250-400 |
Technical data for downstream machine:
| Downstream machine type | YF-300 | YF-400 | YF-600 |
| Max. profile width | 300 | 400 | 600 |
| Total power | 15 | 18 | 28 |

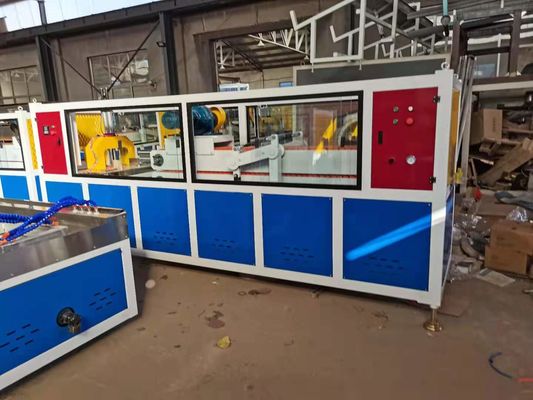

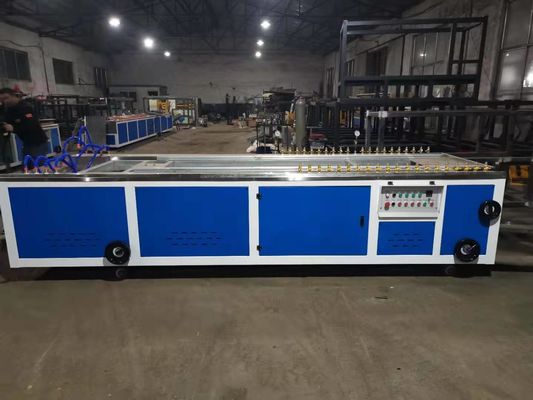

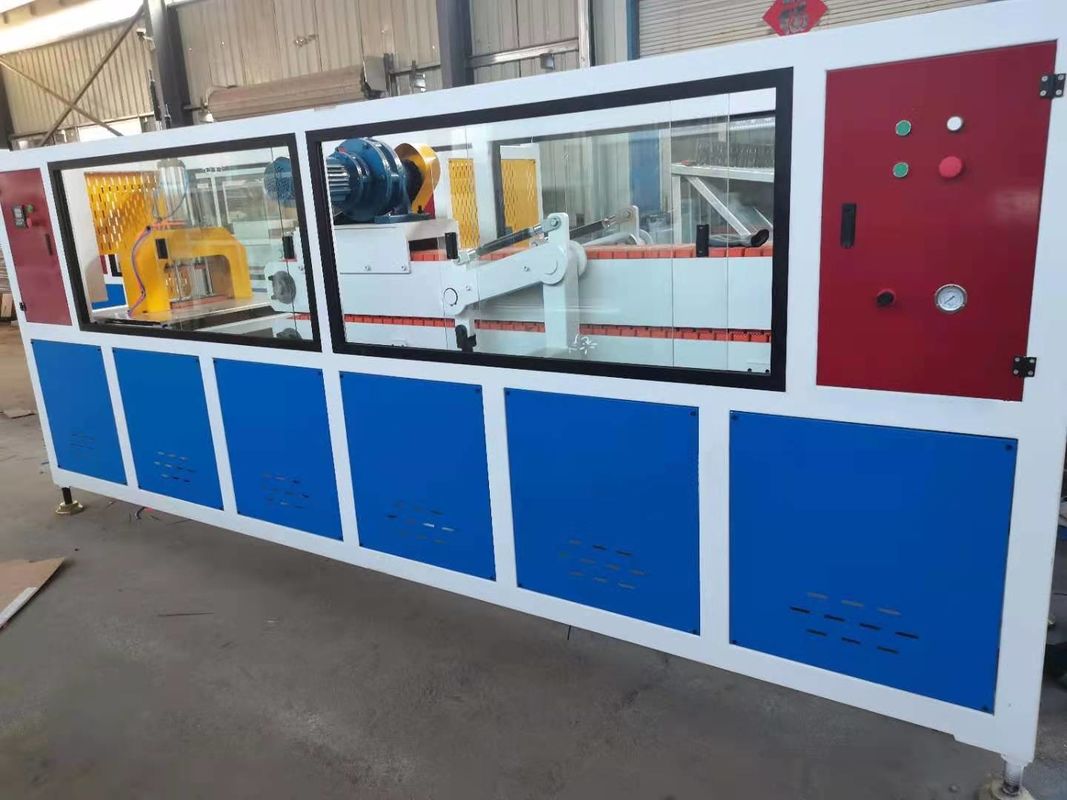

Machine dispaly:
