Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine

Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine
Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine

Large Image :  Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ65
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine

Description
Plastic Processed: PVC Power: 60-120KW
Voltage: 220v Capacity: 120-180KG
Type: Plastic Production Line, Plastic Extrusion Line Screw Design: Double Screw
Automatic Grade: Full Automatic Application: Pipe
High Light:

double screw extruder

,

twin screw extrusion machine



Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine



Quick detail:



Pipe Material : PVC

Pipe diameter range :16-63mm

Output : 120-180KG

Production speed  1-12m/min

Control: PLC

Motor: Siemens

Certification:CE  UL  CSA

Voltage : 220v

Power : 60-120KW

Weight : 8.5ton

Screw design : double screw

After-sales Service Provided: Engineers available to service machinery overseas

mould: change molds to produce different pipe products.





Description:



The working process of PVC conduit pipe making machine:



Raw material+additive → mixing → feeding → conical double screw extruder → "one mould four pipes"mould →

vacuum calibration tank →  haul-off → cutting machine → stacker



 1. Easy operation: The four pipes work independently without effect on each other.

 2. Independent vacuum and low power consumption: There is only one vacuum tank of 2.2KW for four pvc pipes.

 3. Chipless cutting: high cutting speed and no chip.

 4. Mobile printing system: controlled by computer with accurate orientation and only need one printer.

 5. The PVC conduit pipe making machine can save place and time.

 6.  If using SJSZ80/156 extruder, Max. pipe diameter can reach 63mm.





Specifications:



Main Technical Parameters

MODEL

PVCG-110

PVCG-160

PVCG-250

PVCG-315

PVCG-400

PVCG-630

MATCHED EXTRUDER

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ80/156

SJG92/188

OD RANGE(mm)

50-110

50-160

75- 250

110-315

200-400

315-630

LENGTH OF VACUUM

CALIBRATOR TANK(mm)

6000

6000

6000

6000

6000

6000

HAUL SPEED(m/min)

0.6-6

0.5-5

0.4-4

0.3-3

0.2-2.5

0.2-1.5

INSTALLED POWER(kw)

67

85

95

125

135

255

TOTAL LENGTH9(mm)

17000

18000

20000

20500

28000

30000





Applications:



It is mainly used to produce PVC conduit pipe.

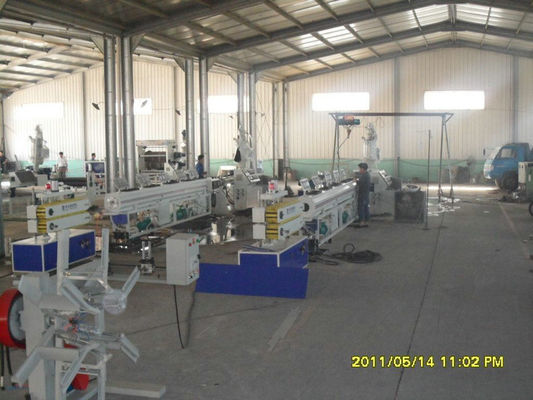

Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine 0

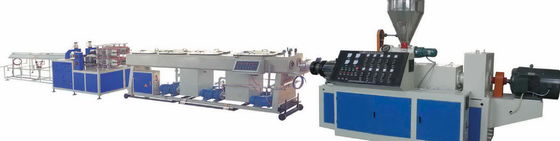

Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine 1





Competitive Advantage:



1. good after-service

2. spare parts are free

3. gurantee:one year or according to customer’s requirement.

4. advanced technology and better quality
