Home ProductsPlastic Pipe Extrusion Line

Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor

Certification
Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor

China Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor supplier

Large Image :  Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Detailed Product Description
Plastic Processed: Pvc Upvc Power: 110-360KW
Capacity: 80-180KG/H,150-250KG/H,150-350KG/H,200-360KG/H,400-600KG/H Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: Twin Screw Automatic Grade: Full Automatic
Application: Pipe



Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor



Quick detail:



Pipe scope : 16-630mm

 Weight: 10T

 Suitable: pvc upvc

 Power:110-360KW

 motor:simens

 condition: new

 type:PVC pipe production line,pvc pipe extrusion line

 application:1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.

5. Certification: CE UL CSA

6. Screw material:38Cr2MoAlA





Description:



1. The line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the

aspects such as the agricultural and constructional plumbing, cable laying etc.

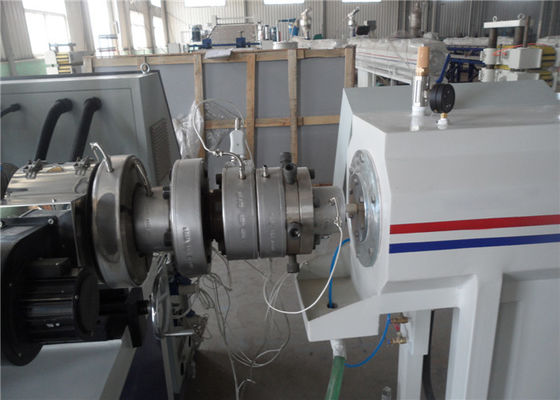

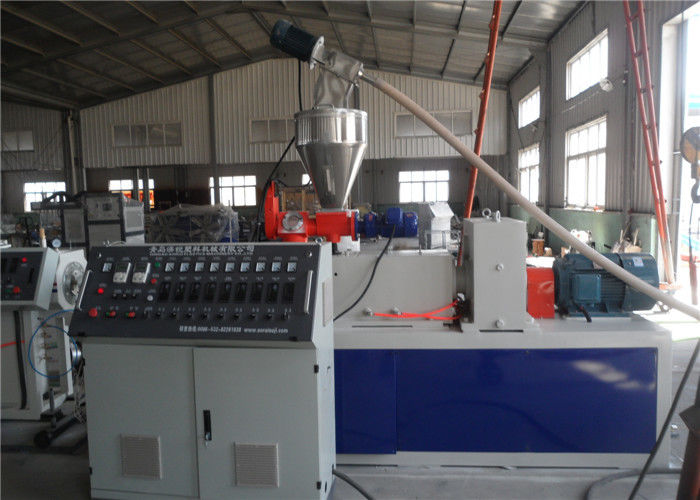

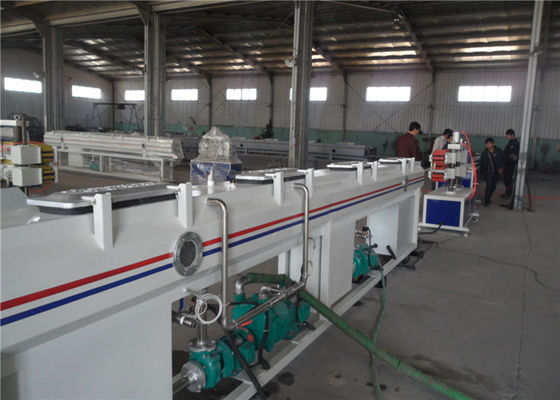

2. This set is composed of the conical twin-screw extruder, vacuum calibrating tank, haul-off, cutter, stacker

or belling machine etc.

3. The extruder and haul-off adopt the imported AC frequency control device.

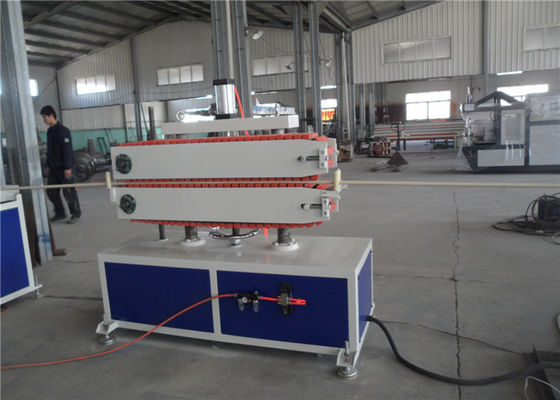

4. The haul-off has different specifications, such as two-claw, three-claw, four-claw, six-claw etc.

5. The cutter may choose the saw blade cutting type or the planetary cutting type.

6. The unit is of reliable performance and high production efficiency.





Specifications:



  PVC pipe machine Line list



Pipe Range

16-40mm

(double)

20-110mm

50-250mm

160-400mm

315-630mm

Extruder

SJZ65/132

Or

SJZ51/105

SJZ65/132

SJZ65/132

Or

SJZ80/156

SJZ80/156

SJZ92/188

Motor(KW)

37KW

or

18.5KW

37KW

37KW

Or

55KW

55KW

110KW

Capacity(KG/H)

80-180

150-250

150-350

200-360

400-600

Lineal speed(M/min)

1-15

1-12

0.3-6

0.2-2

0.1-1





Applications:



1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.



Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor   Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor





Competitive Advantage:



 1. Excellent in chemical corrosion, no rust;

2. With self extinguishing and flame retardant;

3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60

degrees Celsius;

4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7%

higher than the cast iron pipe;

5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to

the steel pipes, low labor intensity, short duration;

6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23

to 2kv/mm;

7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is

narrow.
