PVC Single Wall Corrugated Pipe Production Line With 300kg/h

China PVC Single Wall Corrugated Pipe Production Line With 300kg/h supplier
PVC Single Wall Corrugated Pipe Production Line With 300kg/h supplier PVC Single Wall Corrugated Pipe Production Line With 300kg/h supplier

Large Image :  PVC Single Wall Corrugated Pipe Production Line With 300kg/h

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE
Model Number: SJ65

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Plastic Processed: PE/PP/PVC Power: 11-125KW
Capacity: 300kg/h Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: Single Screw Automatic Grade: Full Automatic
Application: Pipe



PVC Single Wall Corrugated Pipe Production Line With 300kg/h



Quick detail:



 Power supply : 380V50HZ

 Ceterfication: CE UL SCA

 Power: 11-125KW

 Screw design:single screw

  Machine type: pipe production line

 Weight: 8T

 Capacity: 300kg/h

 Diameter of pipe:20-110mm,75-200mm,110-315mm,315-630mm

 Control system: PLC

  Motor: Siemens

  Port :QingDao

  Condition : New

  Max. production speed:12m/min





Description:



1) PVC Single Wall Corrugated Pipe production line shall be used to produce small diameter single wall

corrugation pipe in PVC,PP and PE raw material.

2). Plastic single-wall corrugated pipes produced by this single wall corrugated pipe machine have many

features such as high intensity, good flexibility,high temperature resistance, resistant to corrosion and

abrasion, etc. They has large market which are widely used in the fields of auto wire, electric thread-

passing pipes, protective pipes of lamps and lanterns wire, circuit of machine tool, tubes of air conditioner

and washing machine and so on.


3) Molding corrugation pipe with smooth inside and outside surface and even ripple at one time by

corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe

and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

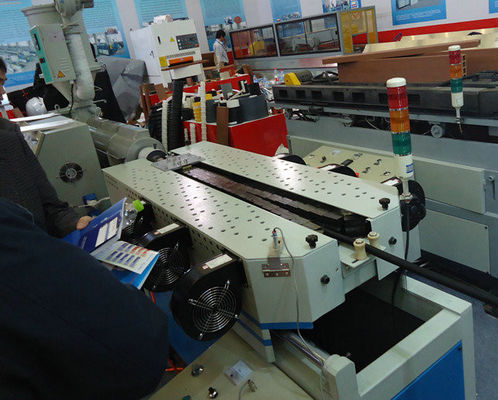

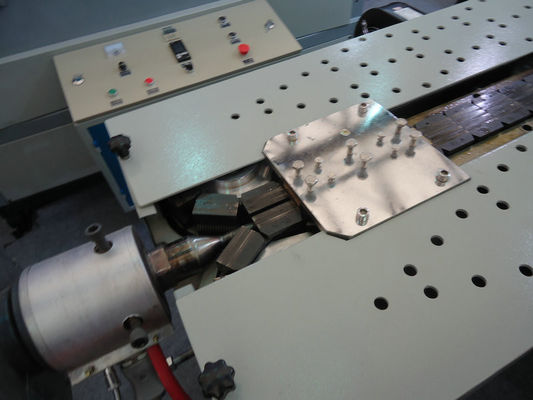

4)PE/PP/PVC Single Wall corrugated pipe production line consists of Extruder, Mold Blocks,

Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system. It can

continuously produce many kinds of diameter single wall corrugated pipe in high speed.

PVC Single Wall Corrugated Pipe Production Line With 300kg/h





Specifications:



Diameter Scope

4.5-9

9-32

32-50

Main Extruder

SJ-30

SJ-45

SJ-65

L/D

30:1

30:1

30:1

Output kg/h

10

40

80

Main Motor Power kw

4

11

18.5

Corrugator Power kw

1.1

1.5

1.5

Mould Block Pairs

42

44

44

Cooling Type

Water and air cooling

Linear Speed (m/min)

6-10

8-12

8-15

Counting Type

Sensing counting

Winding Type

Automatic/Manual





Applications:



They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine

tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,

etc.

PVC Single Wall Corrugated Pipe Production Line With 300kg/hPVC Single Wall Corrugated Pipe Production Line With 300kg/h





Competitive Advantage:



1.high temperature resistance


2.high intensity


3.corrosion  resistance etc
