PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery

PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery
PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery

Large Image :  PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter

PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery

Description
Plastic Processed: PVC Voltage: 220v/380v
Type: Plastic Production Line, Plastic Extrusion Line Screw Design: Double Screw
Automatic Grade: Full Automatic Application: Pipe
High Light:

two screw extruder

,

twin screw extrusion machine



PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery



Quick detail:



 Type: pipe

 Voltage: 380V50HZ

 Pipe diamenter :20-800mm

 Screw design: double screw

 Pipe diameter : 16-40mm

 Application : pipe

 Material : PVC

 Voltage : 220v/380v

 Screw diameter: 51mm

 Capacity : 120KG/H

 Certification : CE UL





Description:



1,  Production flow

Raw material+agency----------mixing---loader-----force feeding-------extrusion------------extrusion mould—

vacuum forming tank---spray cooling tank—oil printer---haul-off---cutter----stacker



2,Each part machinery's function introduction

(1), raw material mixing: is PVC stabilizers, plasticizers, antioxidants and other accessories, scale,

technology has added into a high-speed mixer, the material and mechanical friction material from

temperature to set the process temperature, and then the cold mixing machine material to 40-50 degrees;

this can be added to the extruder hopper.




(2), The extruder portion: the machine equipped with a quantitative feeding device, so that the extrusion

amount and feeding amount can be matched, to ensure that the products stable extrusion. Due to the

characteristics of conical screw, a feeding section having a larger diameter, the material heat transfer area

and the shear velocity is relatively large, is conducive to the plastics materials in metering section of screw,

small diameter, reducing the heat transfer area and on the shear rate of melt, the melt at lower

temperatures and extrusion. Screw in the barrel rotates, the PVC mixture plasticizing to head, thereby

achieving compaction, melting, mixing and homogenizing; exhaust gas, dehydration of. The feeding device

and a screw drive device with variable frequency speed control, can realize the synchronous speed control.



(3),Extrusion die head part : by compaction, melting, mixing of PVC, with follow-up materials by the screw to

die, extrusion die head is the key part of the pipe forming



(4),Vacuum shaping water tank for pipes, cooling stereotypes, stereotypes water tank is provided with a

vacuum for shaping and cooling of the vacuum system and a water circulating system, stainless steel tank,

circulating water spray cooling, vacuum shaping water tank is provided with a mobile device, and left and

right height regulating manual device.



(5),hauling  machine for continuously, automatically and is cooled to harden the pipes from the head out,

variable frequency speed regulation



(6),Cutting machine: by the travel switch according to the length required control, automatic cutting, and

delay over the frame, implementation of water production, cutting machine with permanent switch signal for

instruction, complete the cutting process, the cutting process and pipe running to maintain synchronization,

cutting process by the electric and pneumatic drive, cutting machine is provided with a dust suction device,

the cutting chips produced by timely aspirate, and recovery

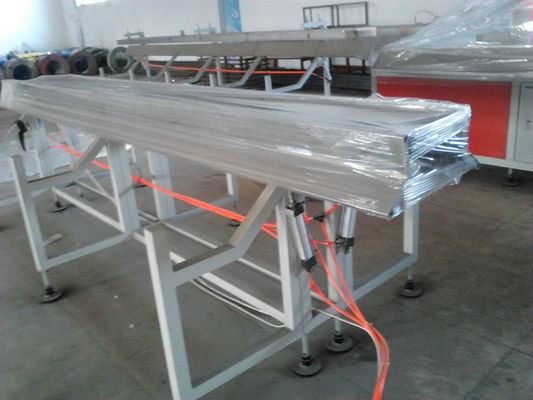

(7),stacker: material turning movement from the cylinder through the gas path control to achieve erection,

turning a limit device, when the cutting saw to cut the pipe, pipe to transport, after time delay, the cylinder

into the work, realize the turning action, reach the discharging purpose. After unloading, the delay of

several seconds automatic reset, waiting for the next cycle.





Specifications:



extrusion machinery

SJZ55/110 or SJZ65/132 conical double screw extruder

pipe range

16-63mm 63-125mm

Main motor

22kw              37kw

Motor speed adjusting

22kw ABB       37kw ABB inverter

vacuum and water pump

4.0kw  4.0kw

hauling motor

1.1KW*2pcs

cutting motor

1.5kw

Area need

22X2X2.8m





Applications:



1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.

PVC Twin Pipe Extruder , Plastic Pipe Extrusion Line / Machinery 0





Competitive Advantage:



1.Twin Pipe extruder

2.high extrusion, high output

3.PVC pipe extrusion

4.best price

5.good after service
