Product Details:
|
| Plastic Processed: | PVC PP PE | Power: | 120KW |
|---|---|---|---|
| Voltage: | 380V/50HZ | Thickness: | 3-20mm |
| Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Double Screw |
| Automatic Grade: | Full Automatic | Application: | Board |
| High Light: | Board Production Line,Plastic Board Production Line |
||
Full Automatic Plastic Board Extrusion Line With Siemens Contactor
Description:
1.Composite of pvc foam board production line:
1)SJSZ 80/156 Conical twin Screw Extruder
ABB frequency converter, SIEMENS contactor, Japan, Motor power:75KW
2)Calibration unit
calibration plate:1500mm×500mm 4couples
3)Cooling tank and bracket
length:6000mm
trimming knife:3 sets
4)Haul-off unit
8 couples
cylinder clamping and loosening
5)Cutting unit
6)Stacker
7)Mould (T-Die )
2. Pecifiation of PVC foam board can be produced by our PVC foam board machine:
Width: 915mm to 1830mm
Thicness: 5-20mm
Density: 0.35-0.7g/cm3
3. Production flow of PVC/WPC foam board:
Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final WPC foam boards
Popular Surface treating ways:
- lamination
- hot stamp printing
Technical parameters:
| Extruder | SJZS65/132 +SJZS80/156 | |
| Mold width | 1400mm | |
| Shaping width | 1500mm | |
| Haul off roller quantity | 8 pairs | |
| Type of cutter | transversal saw cutter | |
| Max output | 400kg/h | |
| Drive motor | 120kw | |
| Machine weight | 1500kg | |
| Machine Size | 21*3*2.2m | |
| specification of the foam sheet(Can be customized according to design) | ||
| Width | 915/1220mm | |
| thickness | 5~25mm | |
Applications:
Architecture decoration industry: building formwork board, outdoors board, indoors decoration board,
residential house, office, separation of public building, commercial decoration frame, board used in
dust-free room.
Household decoration: bathroom cabinet board, furniture board, home decoration board, various
household shelves.
Advertisement industry:screen printing, computer engraving,ad.board,exhibition plate, logo plate.
Transport industry: ship, plane, bus, and train, floor covering, core layer, indoors decoration plate.
Industrial application: rot proof project in chemical industry, thermal shaped part, plate for refrigeration
warehous, special cool-keeping protection plate.
Other applications: construction formwork, sports apparatus, aquaculture material, seashore wet-
proof facility, water-resistant material, arts material and all sorts of light separation plate.

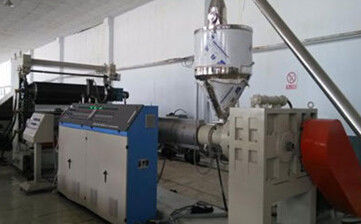

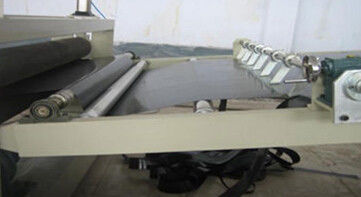

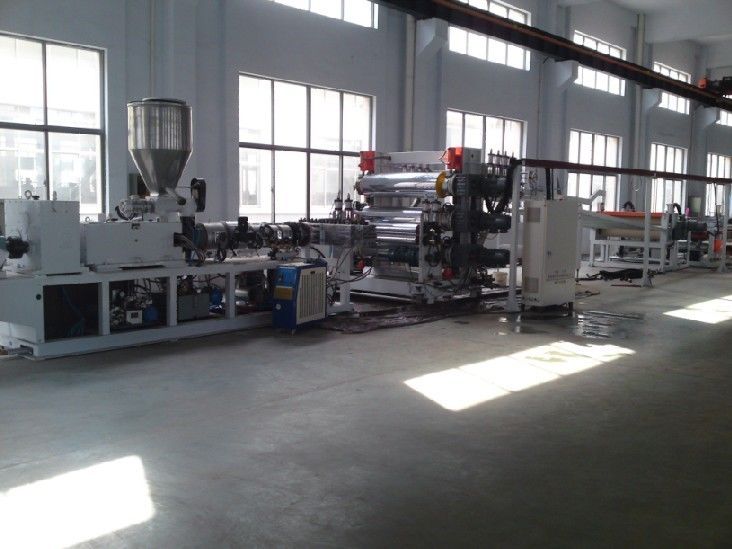

Machine pictures:
