WPC PVC Skirting Board Production Line , Double Screw Extruder

WPC PVC Skirting Board Production Line , Double Screw Extruder
WPC PVC Skirting Board Production Line , Double Screw Extruder

Large Image :  WPC PVC Skirting Board Production Line , Double Screw Extruder

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: Double screw
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

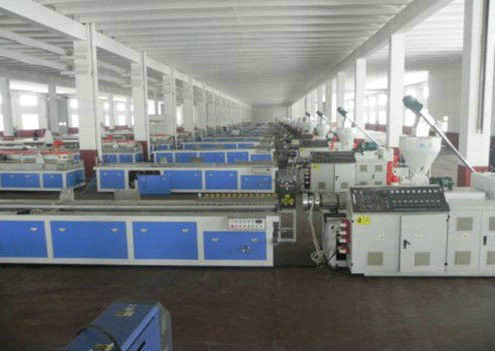

WPC PVC Skirting Board Production Line , Double Screw Extruder

Description
Plastic Processed: PVC WPC Power: 75KW
Voltage: 220v/380v Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: Double Screw Automatic Grade: Full Automatic
Application: Board
High Light:

Board Production Line

,

Plastic Board Production Line



WPC PVC Skirting Board Production Line , Double Screw Extruder



Quick detail :



  Condition :new

  Application: board

  Material : PVC WPC

  Screw design : double screw

  Voltage : 220v/380v

  Power:75KW

  Width:1220mm

  Length:2440mm





Description:



1. This technology is suitable to produce WPC products at high value with various plastic and natural fiber,

and the material is 90% of waste plastic and waste natural fiber.

2. With scientific and resonable design, the machine works efficiently.

3. With both properties of wood and plastic, the WPC products are of high stiffness and impact

performance. The ratio of performance and price is much higher than that of plastic and wood.

4. The WPC products can be recycled 100%, and are environment-friendly products



Conical Twin screw extruder

SJSZ-80/156

equipped with automatic spring feeding machine

Electrical control system



1). ABB inverter

2). Siemens man-machine interface

3).Siemens modules, Schneider contactor

4).Omron temperature controller

WPC Mould

SJM-800×15



Vacuum sizing platform

SZD-6000



Caterpillar tractor

SLQ-950



Transverse cutter

SQG-1000



Conveyor

SXS-4000



High speed cooling mixer

SHRL300/600



Plastic crusher

SWP-450

multi-blade crusher

milling machine









Applications:

WPC PVC Skirting Board Production Line , Double Screw Extruder 0





Specifications:



Material

PVC/PE+wood powder, with accessory material

Product specification

(825mm ,725mm,625mm)×45mm

Production line speed

0.2-0.5m/min

Max. Output:

380Kg/h

Overall dimension

23×1.6×3  L×W×H(m)

Weight

10T

Total power

185kw

Actual power

115kw

Air consumption

0.4m3/min

Air pressure

0.6mpa

Water circulation volume

0.3m3/min

Power

AC380V±10%,50HZ,3P (according to your city;s electricity supply)

Water source

Industrial water, it’s inclusion-free  and under filtration treatment,

Water pressure: 0.4Mpa , water temperature: 14-25°C

Working environment temperature

0-40°C





Competitive Advantage:



 1. adopts superior foaming screw


2. smooth hard board surface


3. stable operation
