Product Details:
|
| Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Twin Screw |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Application: | Sheet |
| Plastic Processed: | PVC | Power: | 55-120KW |
| Voltage: | 220v/380v ,50/60HZ | Thickness: | 0.6-1.5mm, 0.5-3mm |
| High Light: | plastic sheet production line,plastic sheet extruder machine |
||

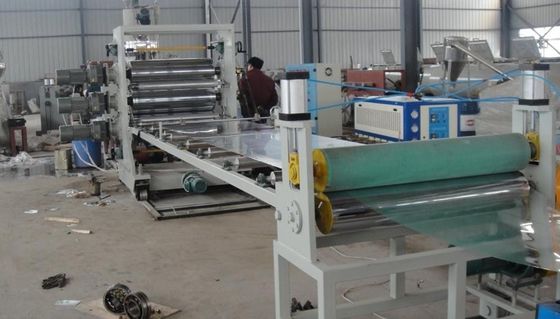

Plastic Sheet Extrusion Line , Twin Screw PVC Extrusion Machinery
QUICK DETAIL :
Product type : sheet
Voltage: 220v/380v ,50/60HZ
Power:55-120KW
Weight:1000KG
Warranty:12months
Heating zones: 5zones
Description:
1. This machine unit adopts the specially-designed SJZ80 or SJZ92 cone twin-screw extruder, imported
transducer for speed adjusting, and imported RKC temperature control instrument, featuring wide adjusting
scope, high temperature control precision, and convenient and reliable operation.
2. The auxiliary machine comprises vacuum shaping platform, tractor, cutter, and loading rack. The
equipment of large forced refrigeration device ensures the shaping effect of door plates. Crawl type tractor
adopts imported reducer motor and transducer and it’s distinguished by reasonable structure, large
traction force, and stable traction. The cutter is reliable and correct in operation and high in cutting
precision. The loading rack, outfitted with movable loading trolley and special rubber protection layer,
doesn’t damage any materials and is convenient for use.
Applications:
Transportation such as steamship, aero-plane, carriage, train compartment, roof shed, case core layer,
inner upholster, etc.
Architecture such as building wall board, decoration board, housing, office, public building interlayer,
commercial decoration shelf, non-dust room board, ceiling plate, etc.
Advertisement such as screen printing, computer lettering, ad board, etc.
Industry: such as chemical industry anti-septicizing project, thermoforming, for refrigerator, for temperature
keeping, for environment protection, etc.
Other applications such as mould plate, sports equipment, breeding equipment, seashore wet-proof
facility, water-fast material, art material, various interlayer, etc.
Specifications:
|
Model |
SJP120/21-1500 |
SJZ85/156-1150 |
|
Product width |
1400mm |
1050mm |
|
Product thickness |
0.6-1.5mm |
0.5-3mm |
|
Extruder specification |
SJP120/21 |
SJZ85/156 |
|
Main motor power |
90KW |
75KW |
|
Max. Extrusion capacity |
350Kg/h |
300Kg/h |
Competitive Advantage:
1. Composed of special twin-screw extruder, die and downstream equipment, formula and processing
technique support.
2. High output, stable extrusion, high foaming, smooth and wearable surface.
3. By equipping with the printing machine, laminating machine or hot stamping machine, can produce
different kinds of artificial wood products.
