Plastic Strapping Band Making Machine , PET Strap Production Line

Plastic Strapping Band Making Machine , PET Strap Production Line
Plastic Strapping Band Making Machine , PET Strap Production Line Plastic Strapping Band Making Machine , PET Strap Production Line

Large Image :  Plastic Strapping Band Making Machine , PET Strap Production Line

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: PET75
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Plastic Strapping Band Making Machine , PET Strap Production Line

Description
Capacity: 50-100kg/h Power: 37KW
Plastic Processed: PET Screw Design: Single Screw
Name: Strapping Band Machine, Strapping Band Making Machine Strap: Single Or Double Strap
Straps: 1-6straps Raw Material: PET Resin
High Light:

Strapping Band Making Machine

,

Strap Making Machine

Plastic Strapping Band Making Machine , PET Strap Production Line



Quick detail:



   plastic material : PET

   screw design : single screw

   power :37KW

   voltage: 380V/220V

   weight: 5T

   payment term : T/T

   certification: CE UL CSA

  Output:50-100kg/h

  Straps :1-6straps

  After-sales Service Provided: Engineers available to service machinery overseas

  mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

  port: Qingdao port

  voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

  Process type: extruding machine



Description:

PET Strapping band Production Line
1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material

humidity less than 40PPM and condensation polymerization;

2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order

to made perfect effect of drying;

3--Special designed extruder screw for PET production, bear the better performance of material separating

and mixing. Automatic material feeding provide the smooth environment for the PET strap production.

4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen

changing, and without material leakage;

5--Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension

strength;

6--Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;

7--Dual-station automatic winder, easy operation; We provide our worldwide customer the turn-key project.

We will assist our customer from the installation to the final production of this line. PET strap machine, PET

strap machinery, PET strap plant, PET strap production line, PET strap line, PET strap band making

machine, PET strap making machine, plastic machinery, PET strap production line, PET strap extrusion

line, extruder, plastic extruder, plastic extruders, plastic machine


Specifications:

Strapping diameter

6-32mm

Screw diameter

65

L/D

34:1

Screw material

38CrMoAlA

Barrel material

38CrMoAlA

Barrel heating

Casting aluminum

Barrel cooling

Water

Driving motor

37kw

Cooling tank length

1200mm

Seven Pre-heating roller

Dia. 215mm

Stretch oven

Carbon Steel welding

Heating power

15kw

Five stretch roller

Dia. 215mm

Three cooling roller

Dia. 215mm

 Calibrating box length

4000mm

 Three roller pulling

Dia. 215mm

Winding unit

Automatic winding

Total installation power

~105kw

Machine dimension

38000x1300x28000mm

Weight

18ton



Application :

It’s mainly used for strapping items

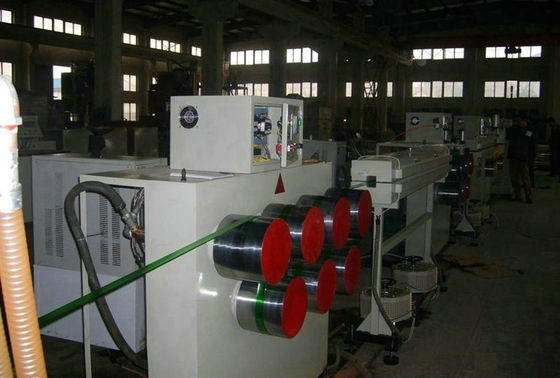

Plastic Strapping Band Making Machine , PET Strap Production Line 0



Competitive Advantage:

1.100%recycle material

2.strong vacuum system to dispense with dehumidify and dry

3.the recycle material consumption is low

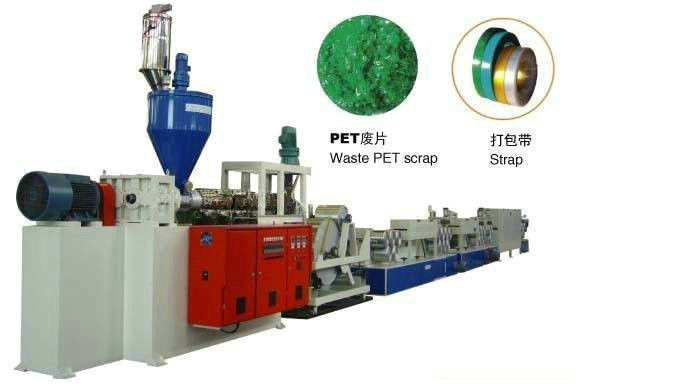

Plastic Strapping Band Making Machine , PET Strap Production Line 1
