Product Details:
|
| Material: | Pvc Wpc | Board Thickness: | 3-30mm |
|---|---|---|---|
| Board Size: | 1220×2440mm | Screw Design: | Double Screw |
| Extruder: | Conical Twin Screw Extruder | Warranty: | 1 Year |
| Inverter: | ABB | ||
| High Light: | Panel Production Line,Plastic Board Production Line |
||
3-30mm Thick Double Screw PVC WPC Plastic Board Extrusion Line For Door Board
Quick detail:
1.PVC Foam Board Production Line is made and designed by our company through many years experience involving in manufacutrring PVC free foamed board production line and PVC Crust Foamed Board Production Line .PVC Foamed Board Prodcution Line has such characteristics as high surface hardness / good smoothness ,etc .
2.Process flow:
Single screw extruderr→hydraulic filter→mould→three-
roller calender→cooling bracket→edge cutting device→haul-off→transversal cutter→stacker(three roller
cooling device,transmission device,length measuring device unit)
Description:
1,The screw is designed of special mixing function and high plasticization capacity.
2,The special designed T-type mold ensures a precise control to the thickness of the board.
3,The accurate temperature control (±1) can precisely control the plasticization process, thickness and
smoothness of board.

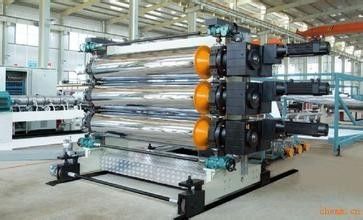

4,The three-roller calendar adopts horizontal, vertical or 45°tilt type installation, with up-down lifting mode.
5.The thickness of board is controlled by screw and pressing roller in two directions.
6.The separate roller temperature control system can precisely control the pressing roller temperature to
ensure a even thickness.
7.Cutting machine can cut the sheet with accurate length and quantity.
8.The winding device uses big torque motor, can freely regulate the winding speed and tension.
9.The automatic meter countering device can pre-set the length of the product.
Technical parameters:
| PVC/WPC Foam Plate/ Board/Sheet Production Line | |||
| Model | SXJZ1220-A | SXJZ1220-B | SXJZ1500-C |
| Extruer | SJSZ80/156 | SJSZ80/173 | SJSZ92/188 |
| Max.output(kg/h) | 350 | 600 | 650 |
| Die width(mm) | 1320 | 1320 | 1550 |
| Production width(mm) | 1220 | 1220 | 1400 |
| Power(kw) | 146 | 170 | 205 |
Competitive Advantage:
1. Automatic machine
2. High quality
3. Competitive price
4. Stable quality

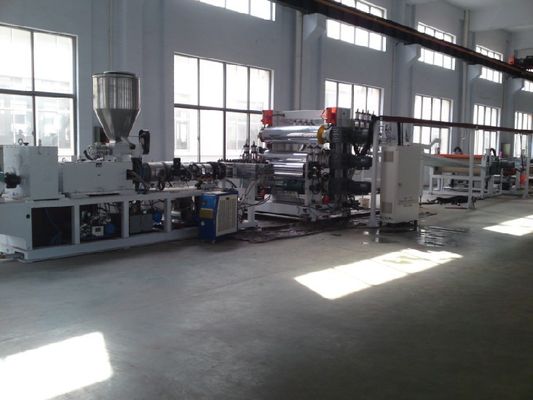

Machine display:
