Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe

Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe
Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe

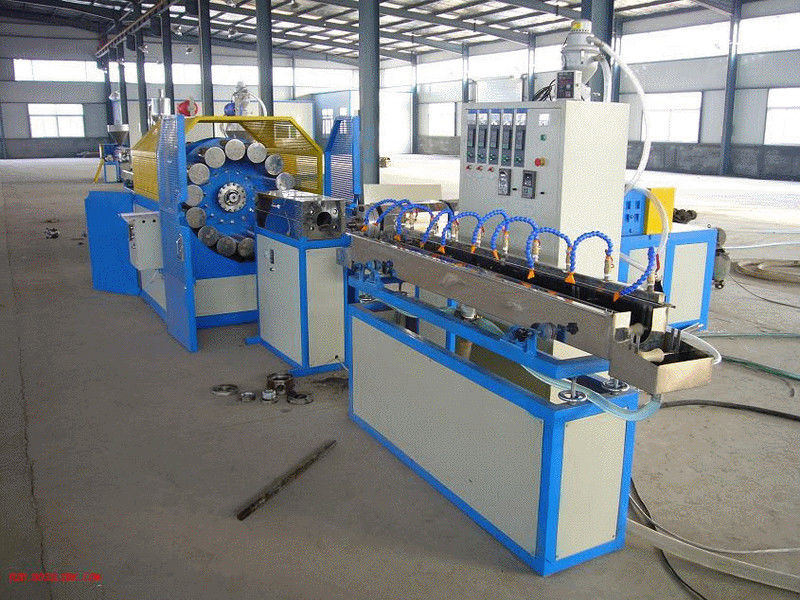

Large Image :  Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ65/28
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe

Description
Screw Design: Single Screw Application: Pipe
Plastic Processed: PVC Power: 50-80Kw
Voltage: 220v/380V Capacity: 90KG/H
Speed Of Screw: 10-80r/min Type: Plastic Production Line, WPC Extrusion Line
Automatic Grade: Full Automatic
High Light:

plastic extrusion machine

,

plastic production line



Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe



Quick detail:



 Pipe material :PVC

 Power         : 50-80Kw

 Voltage :     220v/380V

 Weight:      5T

 Screw type : SJSZ

 Pipe range : 20-63mm

 Power: 32KW

 Capacity : 90KG/H

 Speed of screw : 10-80r/min

 Heating zone :3 zones,

 NO. of extruder: 2sets

 Material of screw : 38CrMoAlA

 Material : pvc + other material

 After-sales Service Provided: Engineers available to service machinery overseas

  mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

  port: Qingdao port





Description:



Technics flow as below:



Raw material + additive → mixing → granulating → conveying feeding → single screw extruder →

extruding mould → spray cooling water tank →belt haul-off → fiber winder → warm-up oven →

single screw extruder → mould → spray cooling water tank → belt haul-off → meter measure → winder →

finished product inspecting & packing.



This machine produces the PVC fiber hose with spiral wrapping and knitted fiber with different braider.

This line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, outer and

inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical

property.

It mainly consists of :

2 sets single screw extruder

2 sets water tank

2 sets tractor,

1 set braider,

1 set drying oven,

1 set winder





Applications:



The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to

convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical

engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water

heater or gas-canisters).

At the present time, it is widely used to the irrigation pipe to the garden and lawn.

Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe 0Plastic Extrusion Line 90kg/H For PVC Fiber Hose / Snake Skin Pipe 1





Specifications:



Extruder

SJ65/28

SJ45/30

Diameter Range(mm)

Φ12-Φ50

Φ6-Φ14

Output

40-75

20-40

Installed Power(KW)

50

35

Main Extruder

SJ65/28

SJ45/28

Diameter Range(mm)

Φ16-Φ50

Φ6-Φ14

Output

40-75

20-40

Producing speed

4-8m per min

Installed Power(KW)

50

35





Main Extruder

SJ65/28

SJ45/28

Diameter Range(mm)

Φ16-Φ50

Φ6-Φ14

Output

40-75

20-40

Producing speed

4-8m per min

Installed Power(KW)

50

35





Competitive Advantage:



1.good after-service

2.spare parts are free

3.gurantee:one year or according to customer’s requirement.

4.advanced technology and better quality
