Product Details:
|
| Type: | Plastic Production Line, WPC Extrusion Line | Automatic Grade: | Full Automatic |
|---|---|---|---|
| Screw Design: | Single Screw | Application: | Drain Pipe |
| Plastic Processed: | PE | Power: | 1-55KW |
| Voltage: | 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ | Capacity: | 120-1200kg/h |
| High Light: | plastic extruder machine,plastic production line |
||

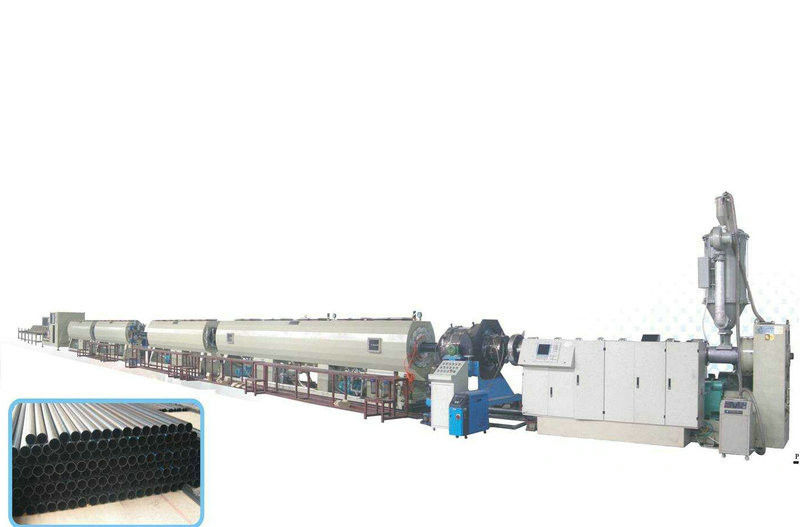

PE Drain Pipe Plastic Extrusion Line With High Speed Extruder
Quick detail:
Type:pipe machine
Pipe material: PE
Application : drain pipe
Place of origin: China
Power : 1-55KW
Output: 120-1200kg/h
Application: water/gas supply, drainage
Dia of pipe : 16-1600mm
After-sales Service Provided: Engineers available to service machinery overseas
mould: change molds to produce different pipe products.
Minimum order: one set
certification: CE,CSA,UL,ISO9001
port: Qingdao port
voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.
Process type: extruding machine
Description:
Raw material+master batches → mixing →vacuum feeding → material dryness →single screw extruder →
four-color string extruder → basket0style mould → calibrator →spray vacuum calibration tank → spray
vacuum calibration tank →spray cooling water tank→ spray cooling water tank → color-ribbon printer →
belt haul-off → planet cutter → pipe rack →finished product inspecting &packing
Large diameter HDPE pipe extrusion machine
1.Super quality and competitive price
2.With a variety of models
3.high yield
Applications:
Drain pipe
Specifications:
|
model |
PE,PP ,PVC 63 |
PE,PP,PVC110 |
||||
|
pipe range(mm) |
20-63 |
63-110 |
||||
|
capacity(kg/h) |
100 |
150-200 |
||||
|
center height(mm) |
1000 |
1000 |
||||
|
single screw extruder |
extruder model |
SJ65 |
SJ90 |
|
||
|
screw diameter(mm) |
65 |
90 |
|
|||
|
L/D |
28:1 |
33:1 |
|
|||
|
Screw rotation speed(rmp) |
80 |
100 |
|
|||
|
motor power(kw) |
22 |
55 |
|
|||
|
heating power(kw) |
16 |
36 |
|
|||
|
coolin blower power(kw) |
0.75 |
0.75 |
|
|||
|
vacuum calibration tank |
length of calibration case(mm) |
6000 |
6000*2 |
|
||
|
vacuum degree(mpa) |
0-0.1 |
0-0.1 |
|
|||
|
absorbing gas speed(m3/h) |
60 |
60*2 |
|
|||
|
water pump power(kw) |
4 |
4 |
|
|||
|
longitudinal moving motor power(kw) |
1.1 |
1.1 |
|
|||
|
Spray cooling tank |
length of spraying tank(mm) |
4000-6000 |
6000-8000 |
|
||
|
water pump power(kw) |
4 |
5.5*2 |
|
|||
|
haul off machine |
driving power(kw) |
1.5 |
2.2 |
|
||
|
max pull(N) |
7000 |
8000 |
|
|||
|
effctive haul off length(mm) |
1200 |
1500 |
|
|||
|
Pneumatic blade type cutter |
blade diameter(mm) |
300 |
350 |
|
||
|
driving power(kw) |
1.1 |
1.1 |
|
|||
|
working air pressure(mpa) |
0.7-0.7 |
0.7-0.7 |
|
|||
|
stacker |
length(mm) |
6000 |
6000 |
|
||
Competitive Advantage:
1.good after-service
2.spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
