Product Details:
|
| Screw Design: | Single Screw | Application: | Sheet |
|---|---|---|---|
| Plastic Processed: | PP/PE | Power: | 37-75KW |
| Voltage: | 380V/50HZ | Type: | Plastic Production Line, WPC Extrusion Line |
| Automatic Grade: | Full Automatic | ||
| High Light: | plastic extruder machine,plastic production line |
||

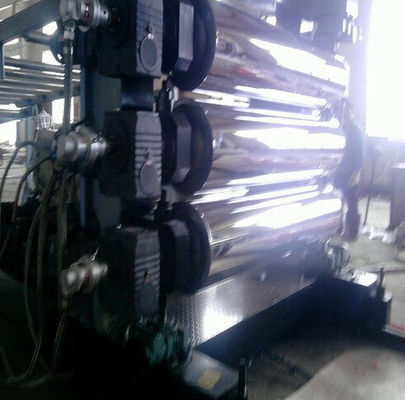

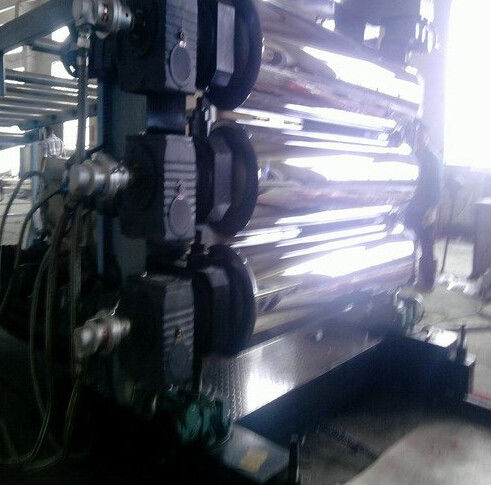

PP PE Sheet Plastic Extrusion Line , 37KW - 75KW Extrusion Equipment
QUICK DETAIL :
Material : pp/pe
Weight: 8T
Voltage: 380v/50hz
Width: 600-1200mm
Thickness: 0.2-1.2mm
Screw dimamter: 65-90mm
Screw design : single screw
Certification : ce ul csa
Condition : new
Main motor power: 37-75KW
After-sales Service Provided : Engineers available to service machinery overseas
Description:
1. The specially designed screws ensure high plastification rate.
2. Precise temperature control(-1`C or +1`C) and special modules ensure precise thickness and flatness
control.
3.The thickness of sheet is precisely adjusted by adjusting the screws and oil pressure wheels.
4.The winder can automatically adjust the speed and tension and set the width of needed products freely.
5.The machine equipped with meter counter can set the length of product.
Applications:
Electronics, food stuff package, building materials, decoration and daily necessities.
Specifications:
|
Model |
Unit |
TYJB-75 |
TYJB-90 |
TYJB-110 |
|
Material applied |
PP,PS,PE |
|||
|
Width of sheet |
mm |
≤600 |
≤750 |
≤1100 |
|
Thickness of sheet |
mm |
0.2-1.6 |
0.2-2.0 |
0.2-2.0 |
|
Extrusion capacity |
kg/h |
60-100 |
100-150 |
150-200 |
|
Diameter of screw |
mm |
75 |
90 |
105 |
|
Installed capacity |
kw |
75 |
90 |
120 |
Competitive Advantage:
1.high output
2.energy saving
3.good plasticity
4.long working time
