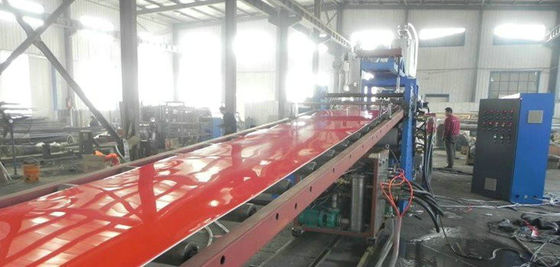

PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw

PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw
PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw

Large Image :  PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw

Description
Plastic Processed: PP/PE Thickness: 0.2-1.2mm
Voltage: 380v/50hz Power: 37-75KW
Application: Sheet Automatic Grade: Full Automatic
Screw Design: Single Screw Type: Plastic Production Line, Plastic Extrusion Line
High Light:

plastic sheet production line

,

plastic sheet extruder machine



PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw





QUICK DETAIL :

  Material : PP/PE
  Weight: 8 T
  Voltage: 380v/50hz
  Width: 600-1200mm
  Thickness: 0.2-1.2mm
  Screw dimamter: 65-90mm
  Screw design : single screw
  Certification : ce ul csa
  Condition : new
  Main motor power: 37-75KW
  After-sales Service Provided :  Engineers available to service machinery overseas


Description:

1. The specially designed screws ensure high plastification rate.
2. Precise temperature control(-1`C or +1`C) and special modules ensure precise thickness and flatness
control.

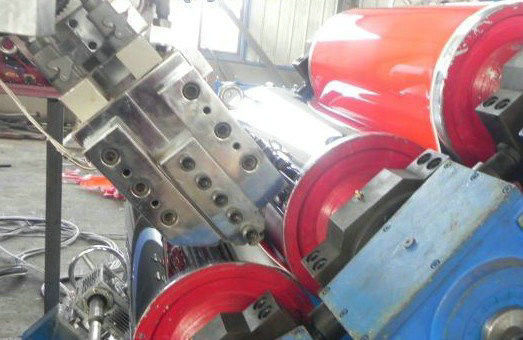

3.The thickness of sheet is precisely adjusted by adjusting the screws and oil pressure wheels.

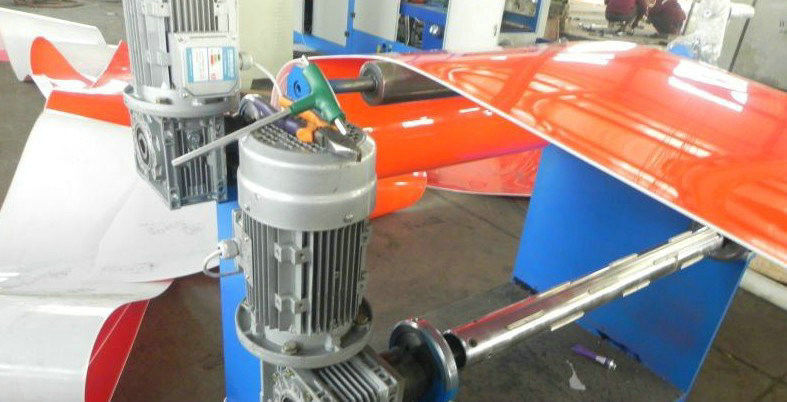

4.The winder can automatically adjust the speed and tension and set the width of needed products freely.

5.The machine equipped with meter counter can set the length of product.


Applications:

Electronics,  food stuff package, building materials, decoration and daily necessities.


PP PS PE Plastic Sheet Extrusion Line 37KW - 75KW With Single Screw 0

Specifications:



  Model

Unit

TYJB-75

TYJB-90

TYJB-110

  Material applied

PP,PS,PE

  Width of sheet

mm

≤600

≤750

≤1100

  Thickness of sheet

mm

0.2-1.6

0.2-2.0

0.2-2.0

  Extrusion capacity

kg/h

60-100

100-150

150-200

  Diameter of screw

mm

75

90

105

  Installed capacity

kw

75

90

120



Competitive Advantage:

1.high output
2.energy saving
3.good plasticity
4.long working time
