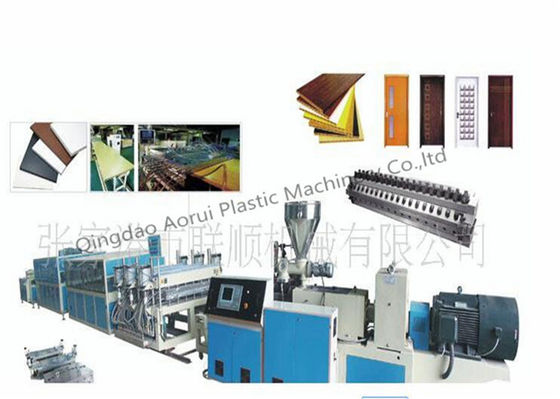

Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder

Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder
Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder

Large Image :  Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter

Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder

Description
Condition: New Plastic Processed: PVC
Screw Design: Double Screw Brand Name: Aorui
Certificate: CE ISO9001 Automatic Grade: Fully Automatic
Raw Material: PVC Place Of Original: Qngdao City
High Light:

Plastic Profile Production Line

,

Plastic Profile Extruder

Conical Twin Screw Plastic Profile Extrusion Line , Recycling PP PE PVC Plastic Profile Extruder

Quick detail:
1.PVC Profile has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping,etc. The material is incombustible, it is safe for use.
2.All series of products have property of moisture proof, mildew proof, water resistance, its vibration resistant effect if good. All series of products have property of weathering proof, its luster may remain forever, it is not easy to be ageing. This product is light, storage & transport, construction are rather convenient.


Machine List and Parameter:




Capacity300-350kg/h
(make 600mm panel)
200-250kg/h
(300,400mm panel)
80-100kg/h
(make line)
Conveyor
-1set
Screw conveyor
Motor:2.2kw
Push motor:0.75kw
D:102mm
SUS 304
Spring conveyor
Feeder motor:0.75kw
D:70mm
SUS 304
Spring conveyor
Feeder motor:0.75kw
D:70mm
SUS 304
Conical double screw extrusion machine
-1set
SJZ80/156
Screw diameter:80/156mm
Screw L:1650mm*2
Rotation speed :1-36.9rpm
Different direction turn
Heat motor: 36kw-5zons(50-300°C)
Cool motor:0.37kw*4
Drive motor:55kw
Pump motor:3kw
Feeder screw motor:1.5kw
Rotation speed:0-63rpm
SJZ65/132
Screw diameter:65/132mm
Screw L:1350mm*2
Rotation speed: 1-36.9rpm
Different direction turn
Heat motor:21kw-4zons(50-300°C)
Cool motor:0.37kw*3
Drive motor:37kw
Pump motor:1.5kw
Feed motor:1.5kw
Rotation speed:0-63rpm
SJZ51/105
Screw diameter:51/105mm
Screw L:1035mm*2
Rotation speed: 1-36.9rpm
Different direction turn
Heat motor:11.5kw-4zons(50-300°C)
Cool motor:0.37kw*3
Drive motor:18.5kw
Pump motor:1.5kw
Feed motor:1.5kw
Rotation speed:0-63rpm
Vacuum calibration table
-1set
L:5000mm
W:1400mm
Center distance:760mm
Water-ring vacuum pump:5.5kw*2
Water pump:1.5kw
Eddy hair dryer:0.75kw
Reducer motor:0.75kw
L:5000m
W:1100mm
Center distance:460mm
Water-ring vacuum pump:5.5kw*2
Water pump:1.5kw
Eddy hair dryer:0.75kw
Reducer motor:0.75kw
L:3000m
W:800mm
Center distance:320mm
Water-ring vacuum pump:3kw*2
Water pump:2.2kw
Eddy hair dryer:0.75kw
Reducer motor:0.75kw

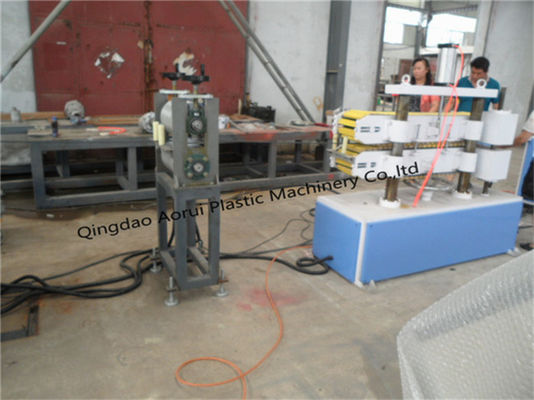

Haul off
-1set
Traction belt qty:2pces
Reducer:2.2kw
Belt L:2200mm
Belt effective L:1800mm
Belt effective w:600mm
Traction speed:0.5-4.6m/min
Traction gommures:290*45*35mm
Traction belt qty:2pces
Reducer:1.5kw
Belt L:2200mm
Belt effective L:1800mm
Belt effective w:300mm
Traction speed:0.5-4.6m/min
Traction gommures:300*45*35mm
Traction belt qty:2pces
Reducer:1.5kw
Belt L:2200mm
Belt effective L:1800mm
Belt effective w:180mm
Traction speed:0.5-4.6m/min
Traction gommures:180*45*35mm
Cutter
-1set
Transversely saw cutting
PLC control
Cutter motor: 2.2kw
Cut max w: 600mm
Cut max height: 120mm
Dust blower: 1.5kw
Blade material: Alloy saw
Saw outer diameter:300mm
Manual cut / automatic cut
Limit switch calculate length
Cutter lift saw cutting
PLC control
Cutter motor: 2.2kw
Cut max w:300mm
Cut max height: 120mm
Dust blower: 0.75kw
Blade material: Alloy saw
Saw outer diameter:500mm
Manual cut / automatic cut
Limit switch calculate length
Cutter lift saw cutting
PLC control
Cutter motor: 1.5kw
Cut max w: 800mm
Cut max height: 180mm
Dust blower: 0.75kw
Blade material: Alloy saw
Saw outer diameter:400mm
Manual cut / automatic cut
Limit switch calculate length
Stacker
-1set
Length:4500mm
Cylinder turning
Limit switch calculate length
Length:4500mm
Cylinder turning
Limit switch calculate length
Length:4500mm
Cylinder turning
Limit switch calculate length
Contactor:Schneider France Air Switch:Delixi Inverter: holp Temperature control:omron


Application:
This product can be worked with normal tools for wooden material. Drilling, sawing, nail, planing, bonding can be conducted like wooden material. It is suitable for thermal shaping, thermal bending and fold processing. It can be welded, it can also be bonded with other PVC material. The surface of this product is smooth, it can be printed.(Clean the surface before printing.)

Competitive Advantage:
Easy to operate
Long service life
All electrical parts is famous brand
