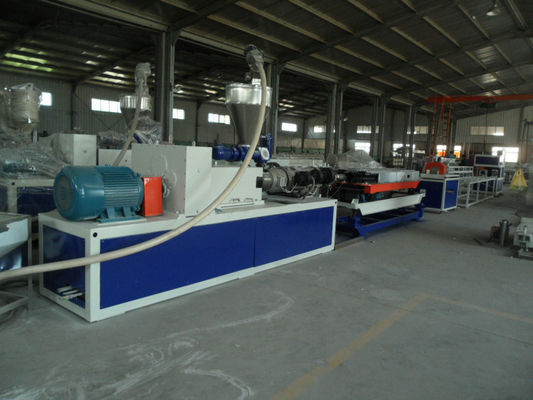

Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe

Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe
Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe

Large Image :  Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ-65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: discuss
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe

Description
Capacity: 120-150kg/h Plastic Processed: PVC
Voltage: 220v/380V Power: 75KW
Application: Pipe Automatic Grade: Full Automatic
Type: Plastic Production Line, Plastic Extrusion Line
High Light:

plastic pipe extrusion machine

,

plastic pipe production line



Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe





Quick detail:



Pipe material: PVC

Type: pipe production line

Voltage: 380V

Condition: New

Application: pipe

Certification: CE UL CSA

Screw design: double screw

Pipe diameter: 50mm 63mm 75mm 90mm 110mm 125mm ect

Screw model: SJSZ65/33

Max.output: 300kg

The install power: 160KW

Guarantee period: 1 year

Brand name: AORUI





Description:

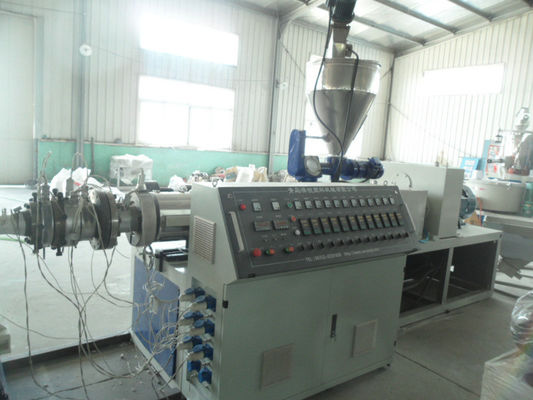

1. Two high efficient co-extrusion double screw extruders

2. It adopts excellent screw and new groove sleeve design, which makes the extruder with bellow advantages: high plasticization rate,smooth melt, stable production process, and enable the inside and outside layer of the pipe to use different materials

3. Corrugation forming block is made by special alloy material. It has high precision, intensity and outstanding heat emission.

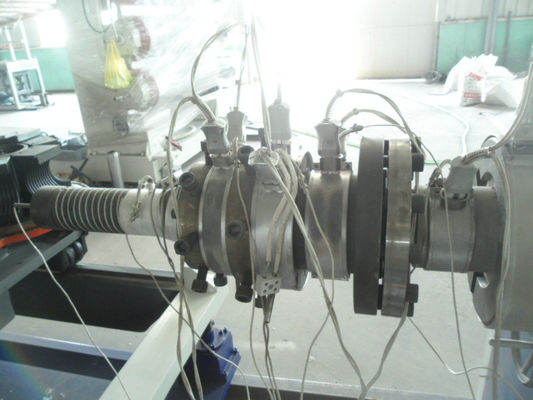

4. Nitrogen treatment of the mould surface. There is wall thickness adjusting device in the mouth mould and can produce pipes of different raw materials.

5. It has a flaring function, which can reduce the investment and enhance efficiency.

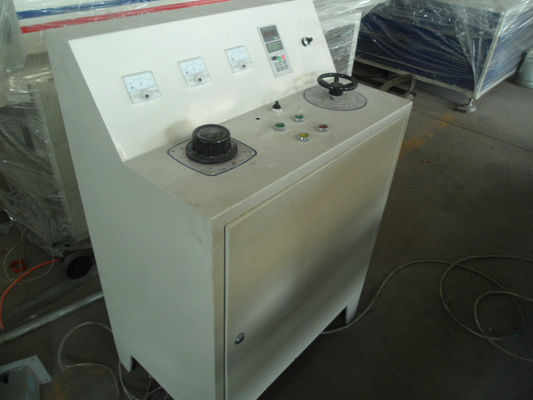

6. The production line adopts advanced Simens PLC control system, with human-machine interface operating system, has high automaticity, easy operation.

7. The mould die is of high precision and the mould blocks are changeable. There are two cooling modes to the mould block, by water and by fan. The planetary cutting machine is of high cutting precision; SIMENS human-machine interface control system realizes high automation. The production line is able to produce PE double wall corrugated pipe.

8. The extruder can be designed according to the different materials; HDPE material uses high efficiency single screw extruder, the PVC material uses large conical double-screw extruder or ouble-screw extruder.





Applications:



The pipes are widely used in the fields of electricity wire sleeve, urban water supply and drainage system, agricultural irrigation pipe, underground filtration irrigation and the water supply or drainage system in buildings, etc.

Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe 0Double Screw Plastic Pipe Extrusion Line For PVC Double Wall Corrugated Pipe 1





Specifications:



Model

Main Machine (extruder)

Quantity of Module

Specification of Pipe(mm)

SDSB 160

SJ 65/33×2 (PE)

40

Φ50-Φ160

SJSZ 51×105,

SJSZ 65×132 (PVC)

SDSB 800

SJ 150/35×2 (PE)

40

Φ400-Φ800







Competitive Advantage:



1. Pipe Diameter 50-800mm

2. High Efficient Single Screw Co-Extruder

3. Definitely Impressing Quality and Price
