Product Details:
|
| Brand Name: | Aorui | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design: | Double Conical Screw | Place Of Original: | Qingdao City |
| Voltage: | 380V 50HZ | Capacity: | 400KG/H |
| Motor Brand: | Siemens | Inverter: | ABB |
| High Light: | PVC Foam Board Production Line,Foam Sheet Extrusion Line |
||
Furniture PVC Foam Board Machine For Shelf / Cabinet With Double Conical Screw
Brief introduction of pvc wpc foam board machine:
1.Pvc board machine adopts specially designed SJSZ80/156 or SJSZ92/188 conical twin screw extruder and imported ABB orSiemens speed frequency converter.It chooses imported RKC and Omron temperature controller. It have a very good plasticization performance.
2.This Machine can produce pvc products of different specifications only via changing mould.
Description:
1. Pvc board machine also include the die head, cooling calibrating mould, cooling carrying roller,hauling-off unit, edge trimming device,dust collecting machine,cutting device,and delivery stacker.
2.All the eletrical parts in line are from famous brand supplier,SIEMENS &ABB brand,insure the machine can high stable running.The machine also have the features of high automatic,easy operate etc.
3.The auxiliary units are able to use the PLC control, which is stable and reliable.
4.The foam boards is mostly used in transportation , advertisement,construction furniture industry ect.
5. The board thickness is from 3mm to 35mm,width is from 1220mm to 1580mm.
Applications:
1. field: decration board, building templete, windows,furnitures, desk and chair
2. product: Real estate, Road bridge building, Coal channel clapboard, War industry, Ship, building, Trains.
3. decoration
4. green environment protection, waterproof, damp proof, anti-corrosion, rot-resistence, ametabolic and good fire-retardant
5. Dimension(L*W*H): 22m*2.5m*2.5m
6. main export place: north America,africa, Europe, southeast asia, south America, etc
7. Material is 100% recycled.
Specifications:
|
Model |
SJSZ80/156,SJSZ92/188 |
|
usage |
Decorative, |
|
raw material |
recycled PVC,additive material,etc |
|
product size |
width:1220mm,thickness:5-30mm,length:2440mm |
|
Extruder feature |
Special designed extruder |
|
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
|
Plastic proceed |
PVC |
|
Auxiliary machine |
Laminating machine,transferring machine, |
|
Product type |
Building Template,furniture board,kitchen board,bathroom board, |
Competitive Advantage:
1.Easy to maintaince and operate
2.All electrical parts adopt famous brand,such as ABB, Omron
3.Long service life

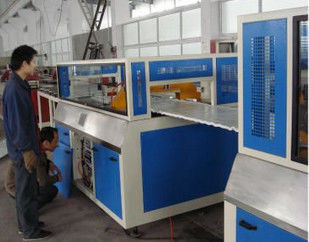

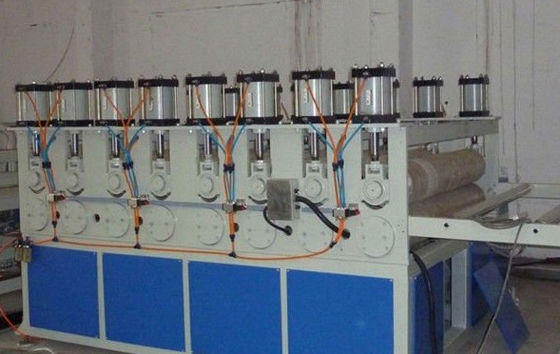

Machine display:
