Double Wall Corrugated Plastic Pipe Extrusion Line , PVC Pipe Extruder

China Double Wall Corrugated Plastic Pipe Extrusion Line , PVC Pipe Extruder supplier

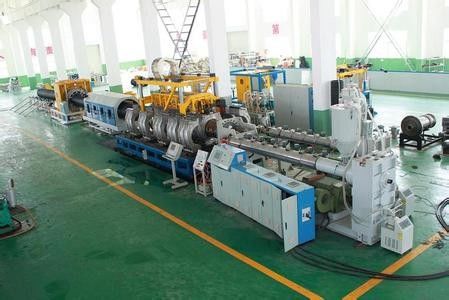

Large Image :  Double Wall Corrugated Plastic Pipe Extrusion Line , PVC Pipe Extruder

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 30 sets per quarter
Detailed Product Description



Double Wall Corrugated Plastic Pipe Extrusion Line , PVC Pipe Extruder



Quick detail:



1. usage:drainage,waste water and sewage,also can be widely used in communications, telecommunications

and cable lying.


2. Field:post and telecommunications, town drainage and water supply, agricultural irrigation and water levels Buried porous and construction fields.


3. Applications for wires,cables threading pipe,washing machine drains,vacuum cleaner tubes, ventilation

tubes, etc





Description:



3.1 The mould blocks are laid out in a new horizontal structure. Comparing with the vertical structure, the rigidity of corrugator is much higher and the center of gravity is much lower so that the corrugator will be running more smoothly and stably with easier operation and maintenance.



3.2 An innovative water cooling system, which is adopted for the cooling of mould blocks, makes the cooling medium cycle in the mould blocks at a higher flow speed to achieve a higher cooling efficiency. In this way, it can ensure the production line have a higher output, and the highest output can reach 1200kg/hr(HDPE).



3.3 Innovative design of corrugator structure makes the left and right frames be able to open and close freely, which bring great convenience for flexible production.



3.4 Unique design of orbits for the running of mould blocks can make the mould blocks running forward and backward bidirectionally.



3.5 The central height of the corrugator is fixed, and there is no need to adjust the frame or platform of the corrugator for easier operation.



3.6 The cooling circuit and vacuum channel in the mould blocks are formed in one time by precision casting with advanced patented technology,



3.7 Automatic lubricating system has lots of lubricating orifices.



3.8 The position of corrugator can be adjusted electrically, and the corrugator is equipped with perfect measuring and feeding back devices in order to show the adjustment quantity in each dimensionality precisely.



3.9 The corrugator has a function of withdrawing in case of emergency.



3.10 It adopts international top brand PCC control system and modularizing control solution so as to have extremely high compatibility and high control precision with high reliability.





Applications:



The perforated corrugated pipes are mainly used for sports venues: the golf course, baseball field, tennis courts, soccer fields, track and field. Airport lawns, urban landscape green, large lawn green garden spaces. Farmland capital construction of farmland soil improvement, soil and water conservation, drought, waterlogging, land salinization improvement. Highway subgrade drainage, river dam Soil and Water Conservation









Specifications:



Pipe diameter range(mm)

50-200mm

Application

sewerage and drainage system,cable protection system

Field

irrigation,communications net engineering,chemical, mining

fluid transportation

advantage

light weight,high corrosion resistance and high ring

stiffness

Usage:

paving of wire and cable,water supply and drainage in

cities, geographic deep irrigation and feed water in

architecture





Competitive Advantage:



1. high temperature resistance


2.high intensity


3.corrosion resistance etc
