Product Details:
|
| High Light: | double screw extruder,twin screw extrusion machine |
||
|---|---|---|---|
SJSZ Screw Plastic Pipe Extrusion Line , Pvc Pipe Extruder 5T
Quick detail:
Pipe material: PVC
Power: 50-80Kw
Weight: 5T
Screw type: SJSZ
Pipe range: 20-63mm
After-sales Service Provided: Engineers available to service machinery overseas
Minimum order: one set
Certification: CE,CSA,UL,ISO9001
Port: Qingdao port
Description:
Technics flow as below:
Raw material + additive → mixing → granulating → conveying feeding → single screw extruder → extruding mould → spray cooling water tank →belt haul-off → fiber winder → warm-up oven → single screw extruder → mould → spray cooling water tank → belt haul-off → meter measure → winder → finished product inspecting & packing.
Power: 32KW
Capacity: 90KG/H
Speed of screw: 10-80r/min
Heating zone: 3 zones,
NO. of extruder: 2sets
Material of screw: 38CrMoAlA
Material: pvc + other material
Mould: change molds to produce different pipe products.
This machine produces the PVC fiber hose with spiral wrapping and knitted fiber with different braider.
This line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property.
It mainly consists of :

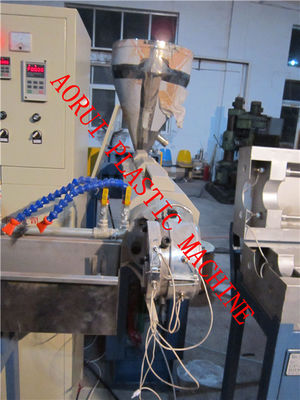

2 sets single screw extruder

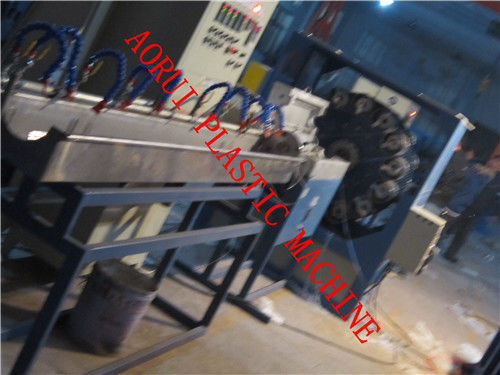

2 sets water tank
2 sets tractor,
1 set braider,
1 set drying oven,
1 set winder
Applications:
The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.
Specifications:
|
Extruder |
SJ65/28 |
SJ45/30 |
|
Diameter Range(mm) |
Φ12-Φ50 |
Φ6-Φ14 |
|
Output |
40-75 |
20-40 |
|
Installed Power(KW) |
50 |
35 |
|
Main Extruder |
SJ65/28 |
SJ45/28 |
|
Diameter Range(mm) |
Φ16-Φ50 |
Φ6-Φ14 |
|
Output |
40-75 |
20-40 |
|
Producing speed |
4-8m per min |
|
|
Installed Power(KW) |
50 |
35
|
|
Main Extruder |
SJ65/28 |
SJ45/28 |
|
Diameter Range(mm) |
Φ16-Φ50 |
Φ6-Φ14 |
|
Output |
40-75 |
20-40 |
|
Producing speed |
4-8m per min |
|
|
Installed Power(KW) |
50 |
35 |
Competitive Advantage:
1. good after-service
2. spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
