Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65X132 |
|---|---|---|---|
| Condition: | New | Application: | Plastic Profile |
| Voltage: | 380V 50HZ | Certificate: | CE ISO9001 |
| Raw Material: | PVC Powder | Processing Type: | Extruding Machine |
| Motor Brand: | Siemens | Temperature Controller: | Omron |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||
PVC Plastic Profile Production Line With Twin Screw Extruder , PVC WPC Window Plastic Profile Extrusion Line
Brief Introduction of pvc profile making machine:
1.Wood-Plastic Co-extrusion(foamed) Profile Production Line
There is no need for unit granulation; the material mixed with wood flour can be directly extruded wood-plastic profile.
2.Working Flow
SJZ Series Conical Twin Screw Extruder→ Die mould → Vacuum Calibration Table → QYQ series Haul-offs and Cutting Machine Unite →DF series Stacker → Control cabinet
(Note: Other Auxiliary Machine, such as crusher, mixer, will be provided according to client's requirements)
Description:
1. High efficiency conical twin-screw extruder, suitable for processing PVC powder raw materials.
Changing moulds to produce many kinds of different PVC profiles.
2.PVC window and door profile extrusion line also can for making wpc PROFILE
Equipped with specially dsigned screw, barrel, die-head and auxiliary machines, using advanced processing technique.
The profile is a new environmental friendly product, material mixed plastic, wood and appropriate aditives.
3.It is widely used for product carrier, packaging box, frame of window & door, decorating board and other outdoor products
Any Profile that you can provide us the drawing we can do it.
Technical Parameter of the Conical Twin-screw Extruder:
| Model | SWYXC45/90 | SWYXC50/105 | SWYXC55/110 | SWYXC65/132 | SWYXC80/156 |
|
Screw Diameter(mm) |
45/90 | 50/105 | 55/110 | 65/132 | 80/156 |
| Screw Speed(rpm) | 1-45.5 | 1-30 | 1-38 | 1-30 | 1-36.9 |
| Motor Power(kw) | 15/11.5 | 22/18 | 22/18 | 37/24 | 55/36 |
| Output(kg/h) | 40-70 | 60-100 | 70-150 | 80-250 | 250-400 |
| Net weight(kg) | 3000 | 3500 | 3800 | 4000 | 5000 |
| Max Width(mm) | 180 | 240 | 400 | 600 | 800 |
|
Drawing Height(mm) |
140 | 140 | 140 | 140 | 140 |
| Drawing Force(fn) | 15 | 30 | 30 | 40 | 50 |
|
Drawing Speed(m/s) |
0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
|
Auxiliaries Total Power(kw) |
18.7 | 31.6 | 31.6 | 31.6 | 31.6 |
|
Outline Dimension(mm) |
3360*1290*2127 | 3620*1050*2157 | 3620*3500*2157 | 4235*1520*2450 | 4750*1550*2460 |
Application of pvc profile machine:
PVC profile production line are widely used in the production of plastic profile,such as below: Window profile, Door frame, PVC angle bead,Wire casing, Plastic ceiling panel
Competitive Advantage:
Good service
Easy to operate
Power save

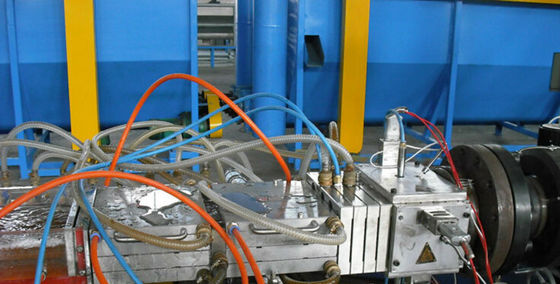

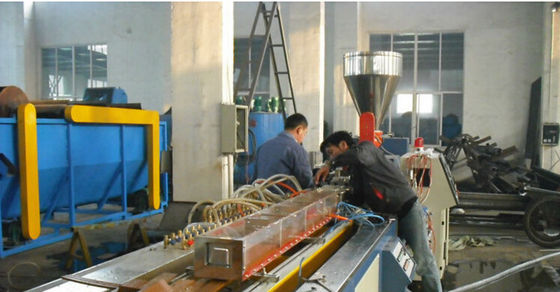

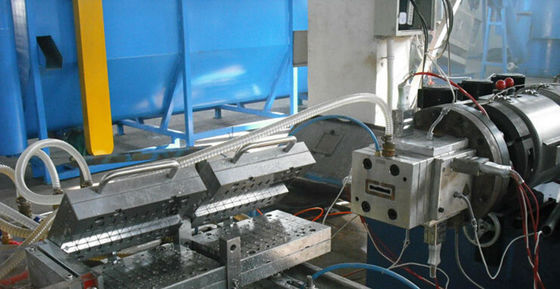

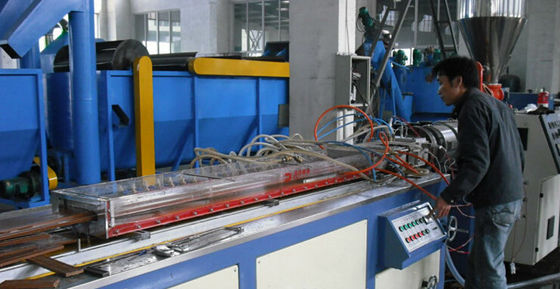

Machine display:
