Product Details:
|
| High Light: | Plastic Recycling Machine,Plastic Pelletizing Machine |
||
|---|---|---|---|
PET Parallel Screw Plastic Granules Machine , Film Pelletizing Extrusion Line
QUICK DETAIL:
1. raw material :pet recycling
2. capacity:300~700kg/h
3. water strands pelletizing
Description:

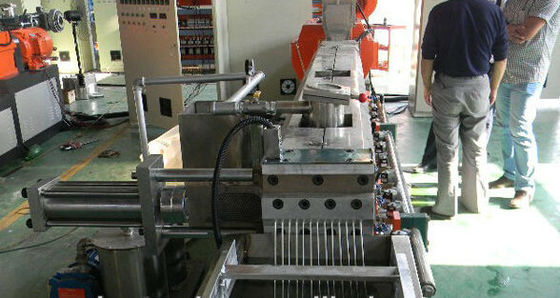

PET Bottle Flakes Plastic Granules Machine , Film Plastic Pelletizing Extrusion Line adopts Water strand pelletizing,process is Parallel twin screw extruder→ hydraulic screen exchanger →Die head→Water cooling tank → Air blower dryer→Granulator.
The plastic raw materials which have been enhancing, filling and blending should be used for injection or extrusion
molding after granulation. For how to choose the appropriate granulation methods, our professional team will provide you
professional technical support.
Applications:
1.CE&ISO
2.water strand granulating
3.Screw material:38CrMoALA
4.Vacuum degassing
Specifications:
| Model |
Screw Diameter D (mm) |
screw L/D |
screw speed N (r/min) |
Main motor power P(KW) |
Screw Torque T (N.m) |
Torque Level T/N³ |
Capacity Q(kg/h) |
| SHJ20 | 21.7 | 28~40 | 600 | 3/4 | 30 | 4.8 | 3-15 |
| SHJ35 | 35.5 | 28~56 | 500 | 11 / 15 | 115 | 4.2 | 20-70 |
| SHJ50 | 50.5 | 28~56 | 500 | 45 / 55 / 75 | 425 | 5.1 | 80-150 |
| SHJ52B | 51.4 | 28~56 | 400/500/600/800 | 45 / 55 / 75 | 425 | 5.1 | 120-280 |
| SHJ65 | 62.4 | 28~56 | 500 / 600 | 55 / 75 / 90 | 675 | 4.8 | 150-300 |
| SHJ65B | 62.4 | 28~56 | 400/500/600/800 | 90/110 | 675 | 4.8 | 200-500 |
| SHJ75 | 71 | 28~56 | 500 / 600 | 90 /110 /132 | 1005 | 4.6 | 300-550 |
| SHJ75B | 71 | 28~56 | 400/500/600/800 | 110 /132/180 | 1005 | 4.6 | 300-700 |
| SHJ95 | 93 | 28~56 | 400 / 500 | 250 / 315 | 2815 | 5.9 | 600-1000 |
Competitive Advantage:
1.300-2000kg/h PET Bottle Recyling Line
2.Easily wash waste plastic products.
3.Long serive life.
4.Competitive price
