ABS / PS Plastic Sheet Extrusion Line Smooth Extrusion For Advertisment

ABS / PS Plastic Sheet Extrusion Line Smooth Extrusion For Advertisment


QUICK DETAIL :


1.material: PP,PE,PVC,ABS,PET;
2.Screw with special mixing and plasticization function;
3.Auto to set the length of product


Description:

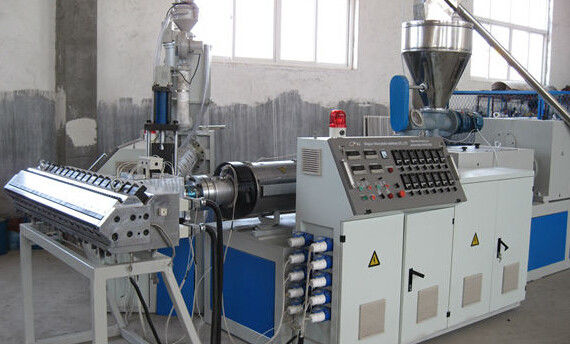

    ABS/PS sheet machine consists of special screw extruder, mould and forming down stream with advantage of high output, smooth extrusion, high foaming rate and flat surface product.

   it is capable of continuously producing one-layer or multi-layer PP plate and sheet with the width less than 3000mm and thickness of 0.25-30mm. The products are widely used in the fields of refrigerator, air conditioner, auto, advertisement, and construction, environmental protection, etc.
Extruder: Appropriate single-screw extruder (exhaust or not) should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.
Screen changer and mould: The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate flow-distribution and guarantee even thickness of plates (sheets).
Three-roller calendaring machine: Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the plates(sheets). Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of plates (sheets).
Bracket of cooling roller: Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.
Landscape orientation cutting machine: It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.
The winder: It is of friction winder and other forms as well can be supplied according to customers’requirements


Applications:

1.high impact resistance,high rot resistance,

2.high temperature resistance,non-toxic,

3.smooth surface,light,easy to the process


Specifications:



Competitive Advantage:

1.Light and easy to machine

2.Very tough and impossible to break

3.Food safety

4.Water Resistant

5.Chemical Resistant
