Product Details:
|
| Condition: | New | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design: | Double Screw | Port Of Lading: | QINGDAO PORT |
| Warranty Time: | 1 Year | Certificate: | CE ISO9001 |
| Place Of Original: | China | Brand Name: | AORUI |
| Voltage: | 380V 50HZ | After-sales Service: | Engineer Availiable To Service |
| High Light: | Double Screw PVC Pipe Making Machine,380V Plastic Pipe Production Line,Plastic PVC Pipe Making Machine |
||
PVC Pipe Manufacturing Process , PVC Pipe Making Machine , Plastic Pipe Production Line
Quick details:
♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
♦ Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
♦ Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
♦ Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more
efficient cooling;
♦ Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
♦ U type, R type and Air blow type socket can be provided according to applications;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
Specification:
1.This extrusion line adopts special screw and mould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate, reduce the technical requirements of the operation of operating workers. And effectively save the workshop space.
2.The PVC pipe making machine is suitable for the production of 20-315mm PVC conduit pipes .
3.The main raw materials for the production of PVC pipes are PVC resin, calcium powder and additives.
4.The PVC pipe manufacturing machine is a conical twin-screw extruder for PVC powder raw materials.
5.The PVC pipe extrusion machine is a dual-pipe output that maximizes the performance of the machine.
6.We also have other diameter PVC pipe machines.
Production Line Technical Parameters:
| Extruder Model | SJ-51X105 | SJ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe diameter(mm) | 16-63 | 16-63 |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.output | 160(kg/h) | 220(kg/h) |
Application:
PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
Competitive advantages:
1. High quality, CE Certificate
2. Easy to operate. Run stable.
3. Engineer availiable to service

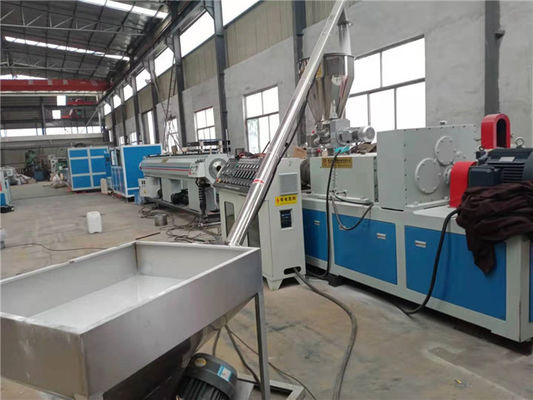

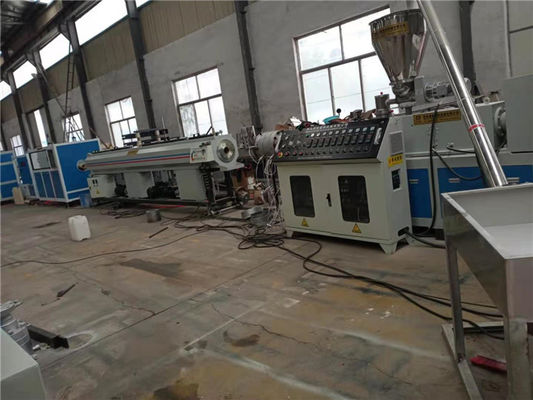

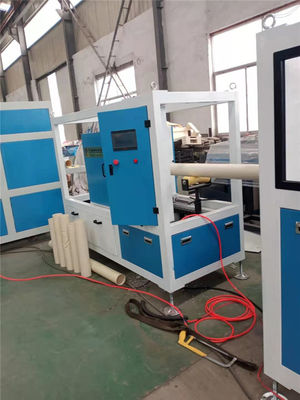

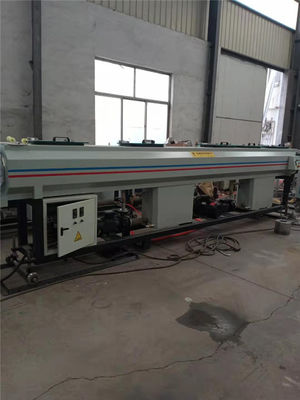

Machine display:
