PVC Profile Manufacturing Machine Cable Trunking Window Profile Extrusion Line CE

Description of PVC Profile Production Line:

A PVC plastic profile making machine is a specialized industrial machine used for manufacturing PVC (polyvinyl chloride) profiles. PVC profiles are widely used in various industries, including construction, automotive, furniture, and electrical applications.

The machine consists of several components and processes that allow for the efficient and precise production of PVC profiles. Here is a general description of the key components and their functions:

1.Extruder: The extruder is the main component of the machine responsible for melting and plasticizing the PVC material. It consists of a screw and barrel system that heats the PVC resin and forces it through a die to form the desired profile shape.

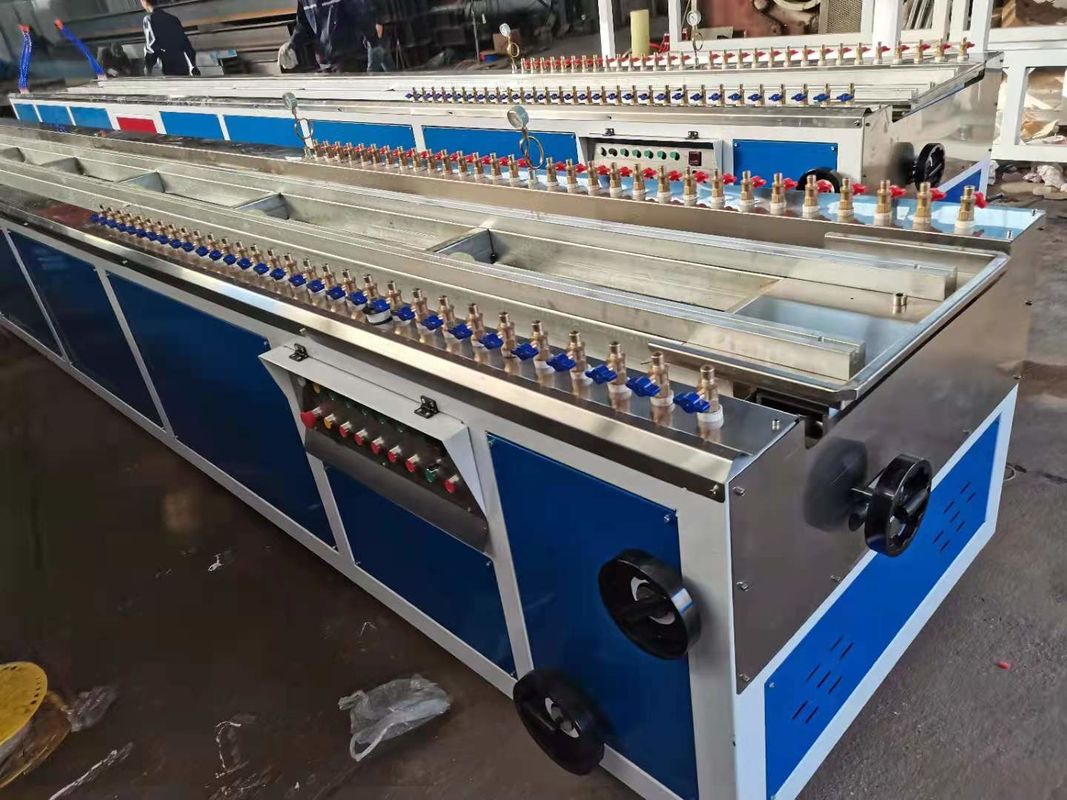

2.Die and Calibration Unit: The die is a specialized tool that shapes the melted PVC material as it passes through. It determines the final shape and dimensions of the PVC profile. The calibration unit helps in maintaining the shape and size of the profile by cooling it rapidly after it exits the die.

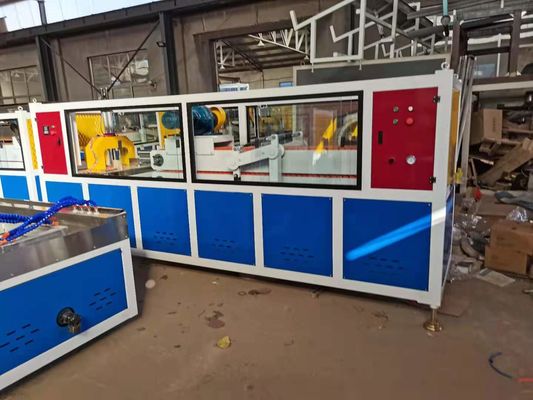

3.Haul-off System: The haul-off system pulls the formed PVC profile out of the machine at a controlled speed. It usually consists of a set of rubber belts or caterpillar tracks that grip the profile and provide the necessary traction.

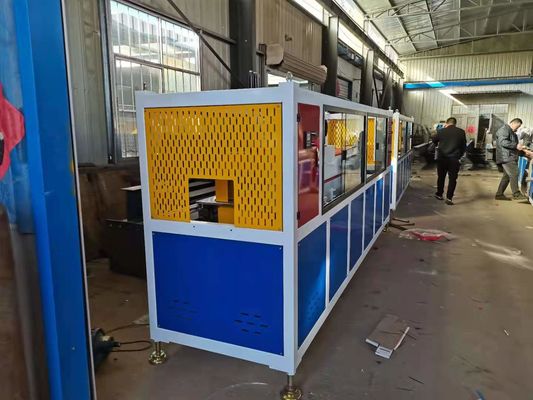

4.Cutting and Stacking Unit: Once the PVC profile has been extruded and cooled, it goes through a cutting and stacking process. The cutting unit trims the profile to the desired length, while the stacking unit collects the cut profiles and arranges them for further processing or packaging.

5.Control System: The machine is equipped with a control system that allows operators to monitor and adjust various parameters, such as temperature, speed, and pressure. It ensures precise control over the production process and helps maintain quality and consistency.
