Description of PVC Pipe Extrusion Line:

1.Produce process for PVC Pipe :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

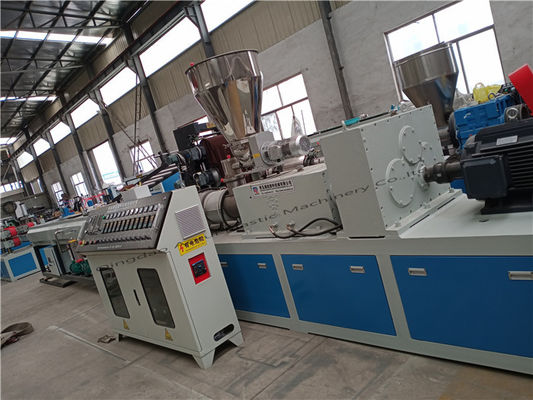

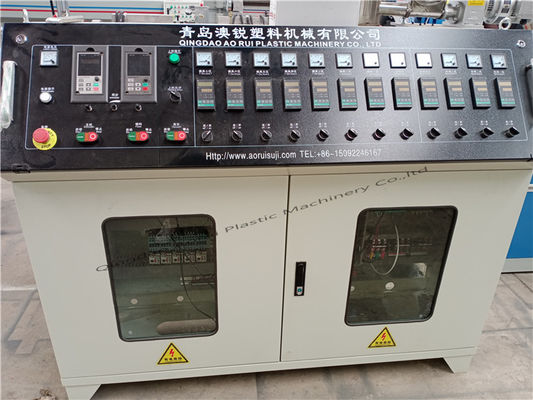

2.Twin Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system

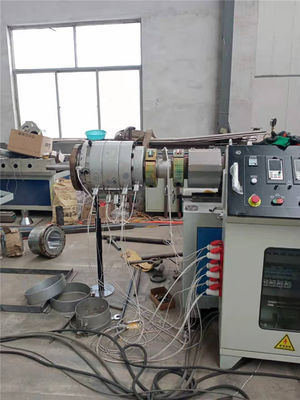

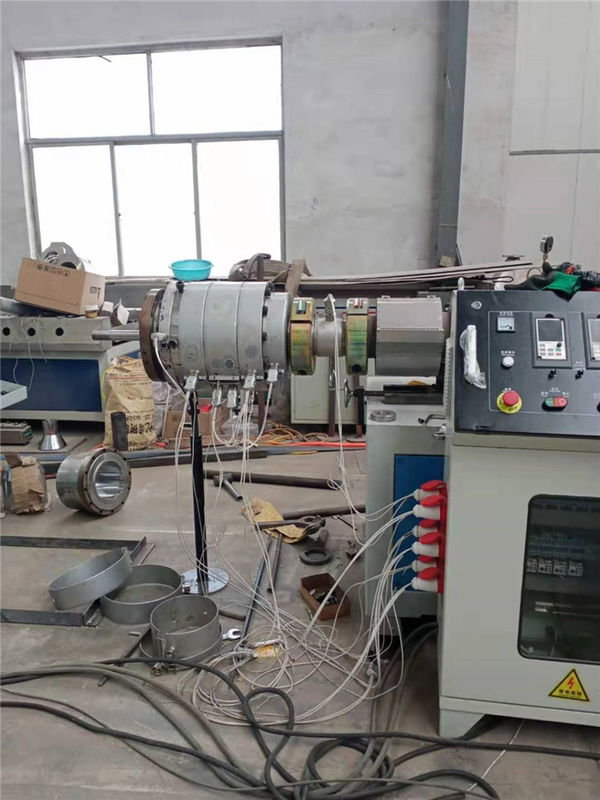

3.Pipe Extrusion Die head

The die head is made by 40Cr moulds materials.
Using mica heating way

- Spacious flow channel design to guarantee highextrusion capacity and good melt.

- Optimized temperature control and flow channeldesign, precise melt temperature control.

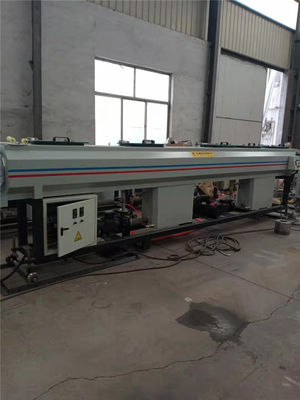

4.Pipe Vacuum Tank

It is adopted stainless steel materials, high quality vacuum and water pumb.

Advanced pipe line layout design and adjustable spray angle for better cooling effect, dense pipe line in the first zone for fast cooling.

5.Haul off unit



it could be 2 claw, 3 claw, 4 claw, 6 claw according different pipe diameters.

For the different pipe size and different speed requirement, Wings Plastic developed kinds of haul-off unit accordingly.

The haul-off unit equiped with single motor drive or every caterpilar with seperate motor drive , there is the belt tyope haul-off unit,stable hauling.

For the large diameterpipe, a pipe winch device is equipped to the production line to reduced the waster material.

6.Cutting Machine



It could be no dust cutting,planetary cutting,chamfer cutting,saw cutting according customer request.

Cutting type:automatic meter counting cutter.



7.Stacking Machine

Length 6000mm
Stacking way:Pneumatic way



Technical Specifications:

Application of PVC Pipes:

It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc. Can manufacture U-PVC, C-PVC, O-PVC pipe according to customer's requirements.
