Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Screw Design: | Double Screw | Place Of Original: | China |
| Motor Brand: | Siemens | Voltage: | 380V 50HZ |
| Screw Material: | 38Cr Moaia | Port Of Lading: | Qingdao Port |
| Final Product: | PVC Profile | Temperature Controller: | Omron |
A PVC window profile making machine is an industrial equipment used in the manufacturing of PVC (polyvinyl chloride) window frames and profiles.
It's designed to automate and streamline the production process, offering the following features:
Extrusion Process: The machine uses an extrusion process to shape and form PVC profiles. PVC material is heated and forced through a die to create the desired profile shape.
Profile Design: These machines are versatile and can produce a wide variety of window profiles, including casement, sliding, and tilt-and-turn profiles.
Precision Control: They offer precise control over the extrusion process, ensuring uniform and consistent profile dimensions.
Cooling System: A cooling system is in place to quickly cool and solidify the newly formed profiles as they exit the die, maintaining their shape.
Cutter and Saw: Many machines have integrated cutting and sawing systems to trim the profiles to the required length with high precision.
Automation: These machines are typically highly automated, reducing the need for manual labor and increasing production efficiency.
Material Handling: They may include material handling systems for PVC feedstock and profile transportation within the production line.
Quality Control: Quality control mechanisms may be integrated to inspect and ensure the produced profiles meet industry standards.
Customization: Some machines offer flexibility for customization, allowing manufacturers to adjust parameters to meet specific design requirements.
Energy Efficiency: Modern machines are designed to be energy-efficient, reducing operational costs.
PVC window profile making machines play a crucial role in the window and door manufacturing industry, helping to produce durable, energy-efficient, and aesthetically pleasing window frames.
Technical Parameters:
| Model of Twin screw Extruder | Screw diameter (mm) | Rotational speed of screw (rpm) | Effective work length (mm) | Main motor power (kw) | Heating power of Barrel (kw) | Production capacity (kg/h) | Central height of machine (mm) | Net weight | Overall size (mm) |
| SJSZ45 | 45/90 | 1-45 | 1070 | 15 | 9.6 | 70 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 1100 | 22 | 11.5 | 80 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1-40 | 1200 | 22 | 18 | 150 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 1440 | 37 | 24 | 250 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 1800 | 55 | 36 | 360 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 2500 | 110 | 88 | 1000 | 1000 | 5500 | 6000*1600*2500 |

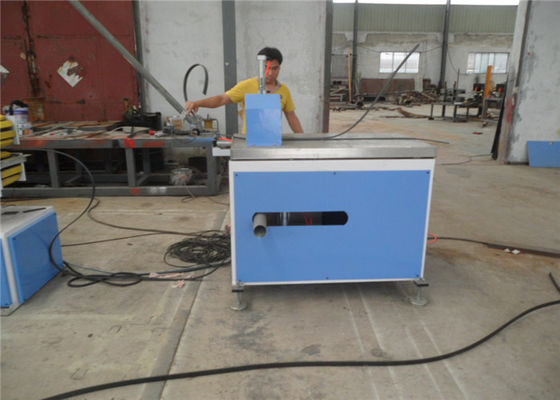

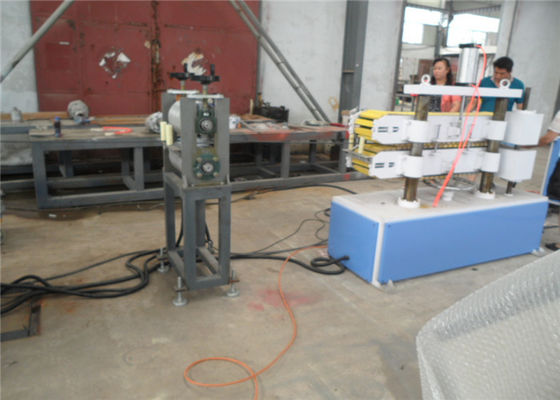

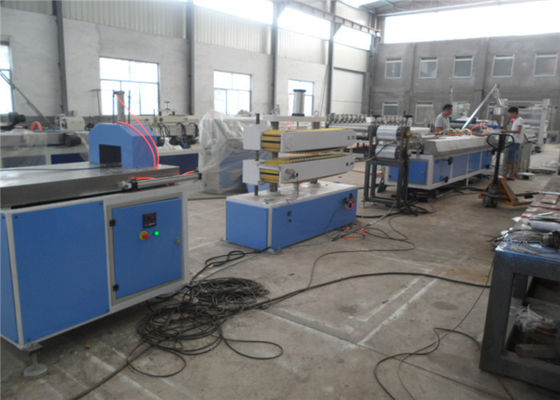

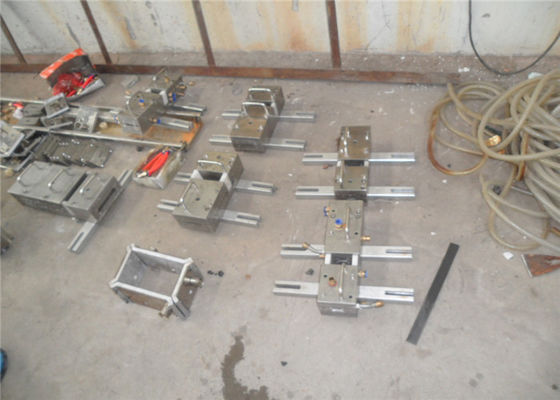

Machine display:
