Product Details:
|
| Brand Name: | AORUI | Model Number: | SJ75/33 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Certificate: | CE Certificate |
| After-sales Service: | Engineer Availiable To Go Abroad | Motor Brand: | Siemens |
| Inverter Brand: | ABB | Screw Design: | Double Screw |
| Place Of Original: | China | HS Code: | 8477800000 |
| High Light: | 40mm Corrugated Pipe Production Line,Single Wall Corrugated Pipe Making Machine,PE Corrugated Pipe Making Machine |
||
PP PE 9mm to 40mm Water Cooled Corrugated Pipe Production Line , Single Wall Corrugated Pipe Making Machine
Description of PE Corrugated Pipe Extrusion Line:
1.PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes.
2.The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
3.High speed single wall corrugated pipe making machine can produce PE,PP,EVA, PVC, PA etc material single wall corrugated pipe continuously. We designed new technology, replace the traditional chain forming machine.
4.The appearance and precision of single wall corrugated pipe hav improv gratly. The production line is driven by gears, and the mold runs in the track. It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.
Parameters of Wholesale Plastic PVC PP PE Single Wall Corrugated Pipe Tube Hose Production Extrusion Line
| pipe diameter range(mm) | 4.5-9mm | 9-32mm | 32-50mm |
| extruder model | SJ-30 | SJ-45 | SJ-65 |
| motor power(kw) | 4 | 11 | 18.5 |
| capacity(kg/h) | 10 | 40 | 80 |
| cooling way | water or air | water or air | water or air |
| production speed(m/min) | 6-10 | 8-15 | 10-17 |
Application:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.

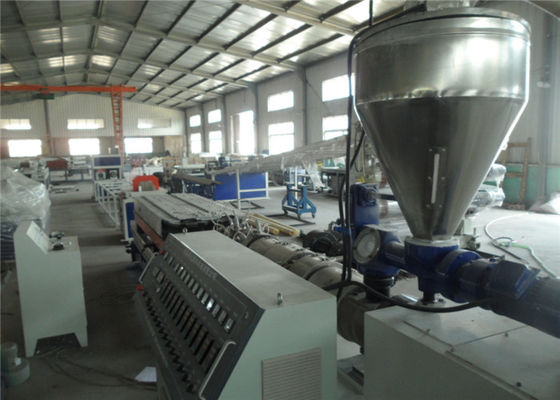

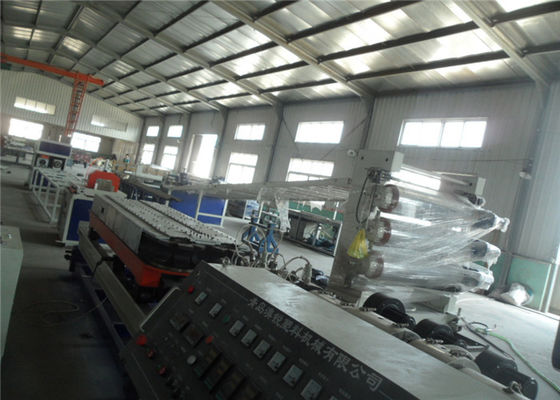

Machine display:
Tag: PE Single Wall Corrugated Pipe Machine Corrugated Pipe Extrusion Line
