Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Place Of Original: | China |
| Inverter Brand: | ABB | Temperature Controller: | Omron |
| Port Of Lading: | Qingdao Port | Motor Brand: | Siemens |
| High Light: | PE Water Supply Pipe Extrusion Line,Plastic HDPE Pipe Extrusion Line,Plastic PE Pipe Single Screw Extruder |
||
PE Water Supply Pipe Extrusion Line , Plastic HDPE PE Pipe Extrusion Line With Single Screw Extruder
1.AORUI Company devoloped a new type of pipe production line for PE, PP and other polyolefin pipes, all models with advanced PLC/PCC modular intelligent control system, in order to realize the whole production line automation and real-time dta recording and closed-loop control, the production line has some high yield, wide adaption of raw materials, sustained and stable production of high quality products.
2.Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler
3.PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet/laser printer, etc. to achieve the production and manufacture of high-grade tubing.
Main Technical Parameter :
| Model number | 16/63 | 20/110 | 50/160 | 75/250 | 110/315 | 200/450 | 315/630 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm |
| Max output | 150kg/h | 200kg/h | 350kg/h | 350kg/h | 350kg/h | 450kg/h | 850kg/h |
| Production rate | 1-15m/min | 1.2-12m/min | 0.6-8m/min | 0.5-4m/min | 0.4-3.7m/min | 0.3-3m/min | 0.2-2m/min |
| Extruder model | SJ-65/30 | SJ-65/33 | SJ-75/33 | SJ-75/33 | SJ-75/33 | SJ-90/33 | SJ-120/33 |
| Installed power | 85kw | 110kw | 125kw | 180kw | 260kw | 325kw | 480kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm |
| Installation area | 35x3.0x2.0m | 38*3.1*2.2m | 38*3.1*2.2m | 40*3.2*2.4m | 42*3.2*2.4m | 52*3.3*2.6 m | 60*3.5*2.8m |
PE Pipe Extrusion Machine Features:
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer a stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

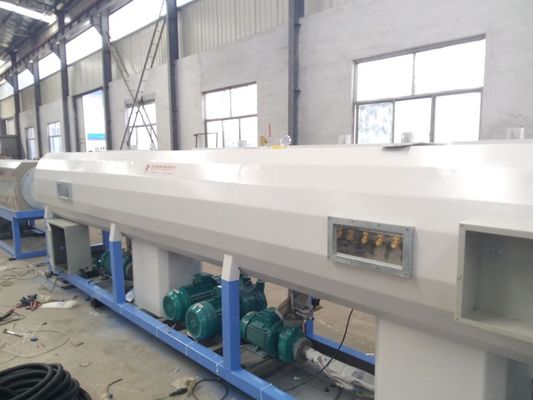

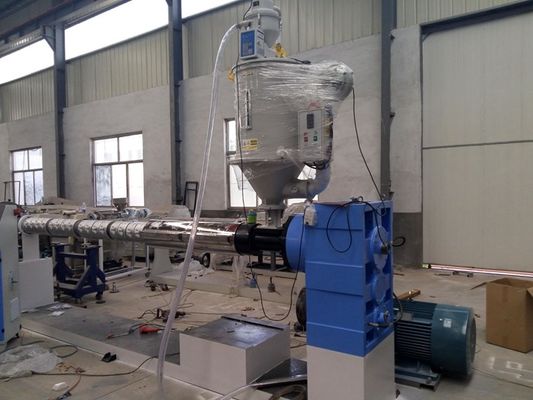

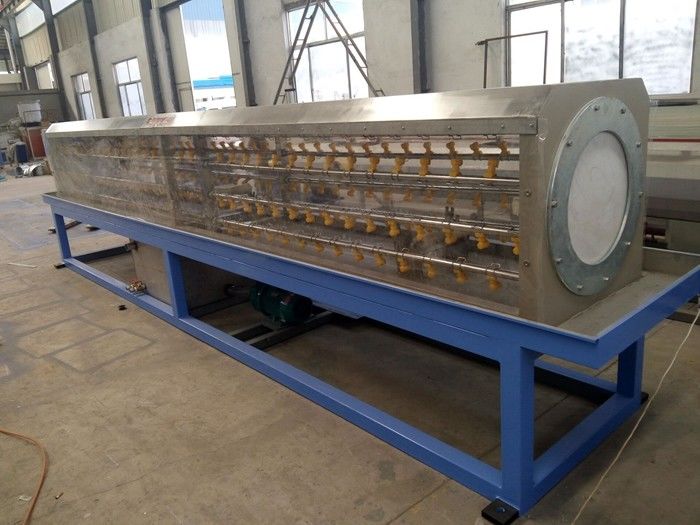

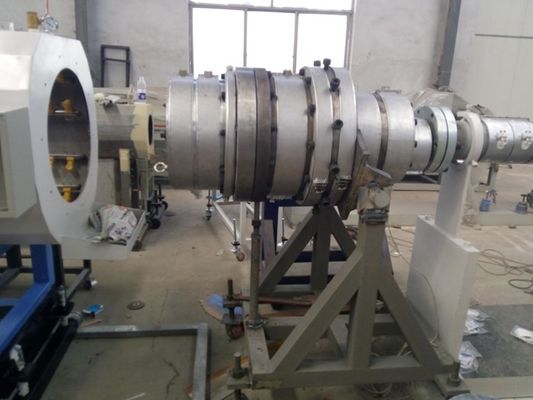

Machine display:
