Product Details:
|
| Brand Name: | AORUI | Screw Design: | Double Screw |
|---|---|---|---|
| Condition: | New | Place Of Original: | China |
| Certificate: | CE Certificate | Model Number: | SJSZ65X132 |
| Inverter Brand: | ABB | Port Of Lading: | Qingdao Port |
| High Light: | WPC Profile Production Line,Twin Screw Extruder Profile Production Line,Plastic Profile Production Line |
||
PVC WPC Profile Machine WPC PVC Window Door Plastic Profile Production Line With Twin Screw Extruder
Description of PVC Plastic Profile Production Line:
1.The PVC door and window profile production line can choose different specifications of conical twin-screw extruders according to different profile sections and molds, and configure the corresponding vacuum calibration table, tractor, cutting machine, stacker and other auxiliary equipment.
2.To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.
Technical Parameter of pvc profile extrusion line:
| Model | SJSZ 51/105 | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 |
|
Screw Diameter (mm) |
51mm/105mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
|
Output (Kg/h) |
80-120 | 160-200 | 250-350 | 400-500 |
|
Main Drive Power (kw) |
18.5 | 37 | 55 | 110 |
|
Heating Area (Kw) |
3 zones, 18Kw | 4 zones, 20Kw | 5 zones, 38Kw | 6 zones, 54Kw |
Application:
The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

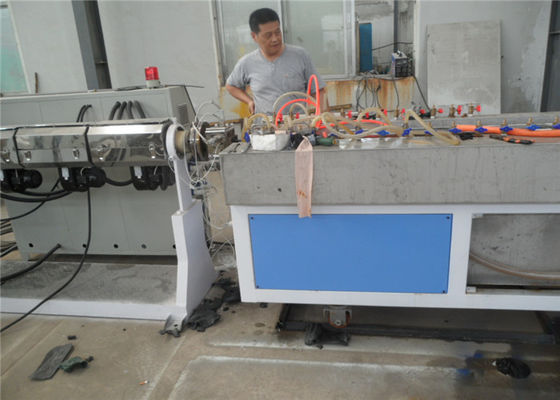

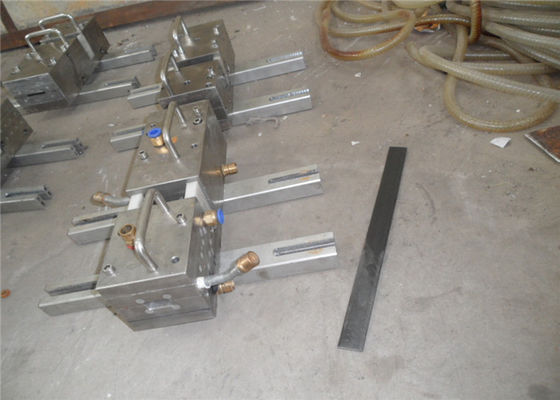

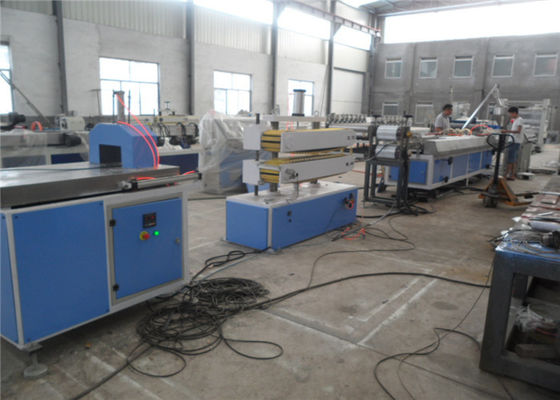

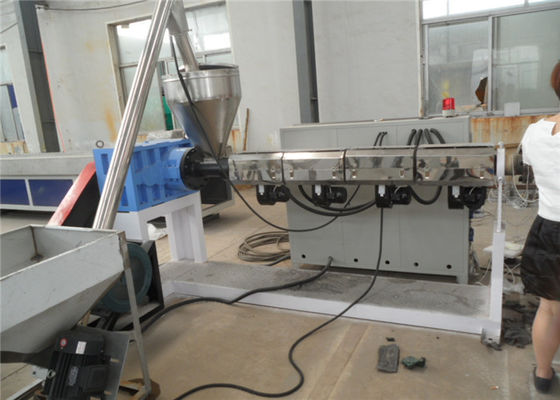

Machine display:
Tag:pvc profile extrusion line pvc profile extruder wpc profile making machine
