Product Details:
|
Certificate: | CE | Power: | 11-125KW |
---|---|---|---|
Capacity: | 300kg/h | Type: | Plastic Production Line, Plastic Extrusion Line |
Screw Design: | Single Screw | Automatic Grade: | Full Automatic |
Product Type: | Corrugated Pipe | ||
High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |

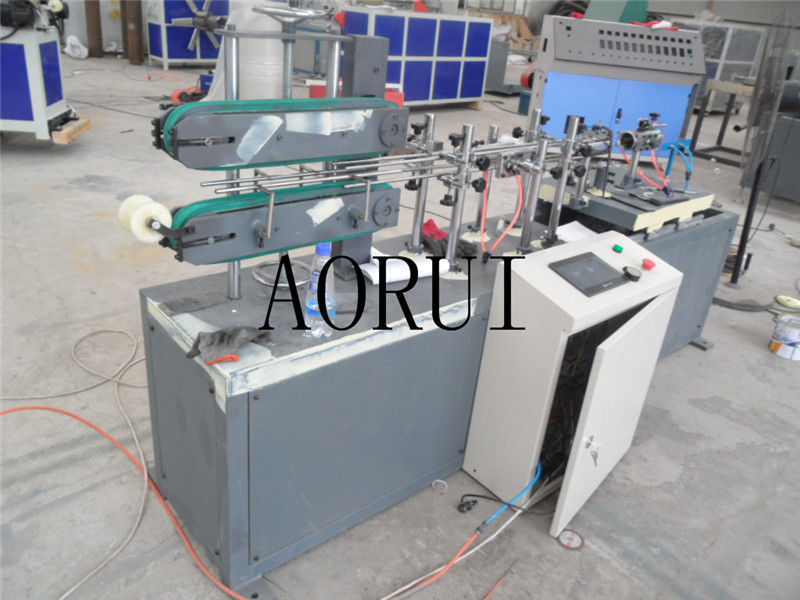

Extension Corrugated Plastic Pipe Extrusion Line for Washing , Corrugated Pipe Extruder
Quick detail:
1. agriculture garden project: farmland, fruit tea, as well as forest calandria.
2. roadworks: as railway, highway infiltration, drainage
3. municipal engineering: for drainage, sewage.
Description:
1. PP/PE/PA/PVC/EVA production line canbe used to produce single-wall corrugated pipes.
2. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

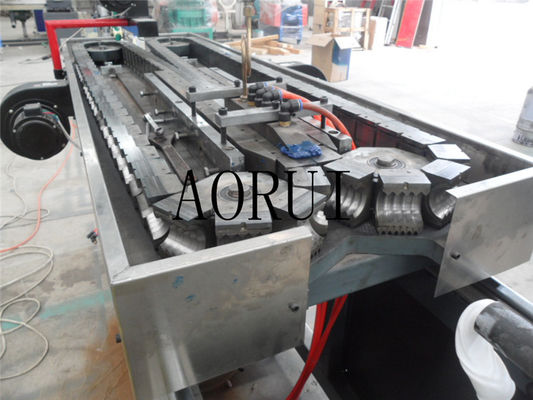

3. Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.
Specifications:
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
L/D |
30:1 |
30:1 |
30:1 |
Output kg/h |
10 |
40 |
80 |
Main Motor Power kw |
4 |
11 |
18.5 |
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
Mould Block Pairs |
42 |
44 |
44 |
Cooling Type |
Water and air cooling |
||
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
Counting Type |
Sensing counting |
||
Winding Type |
Automatic/Manual |
Applications:
1. The PVC, PE single wall corrugated pipe production line shall be used to produce small diameter PVC, PP and PE single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.
3. End produces can be used as wires and cable passing pipes, washing machine drain pipes, dust collector pipes and ventiducts.
3) APPLICATION:They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Competitive Advantage:
1. provide all the machines for the complete production according to customer's requirements.
2. provide complete service for factory layout and other informations to help customer to build
the factory.
3. provide the raw material to the customer if you need
