Product Details:
|
| Market: | Europe,america,etc | Process: | Extrusion |
|---|---|---|---|
| Capacity: | 80-180KG/H,150-250KG/H,150-350KG/H,200-360KG/H,400-600KG/H | Type: | Plastic Production Line, Plastic Extrusion Line |
| Screw Design: | Twin Screw | Color: | Blue |
| Certificate: | CE,ISO9001 | ||
| High Light: | double screw extruder,twin screw extrusion machine |
||
UPVC Plastic Pipe Twin Screw Extruder For Agricultural , PVC Pipe Production Line
Quick detail:
1. recycled material
2. hihg output
3. used for drainage and water supply
Description:

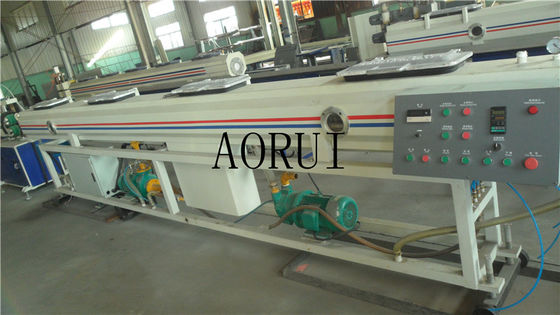

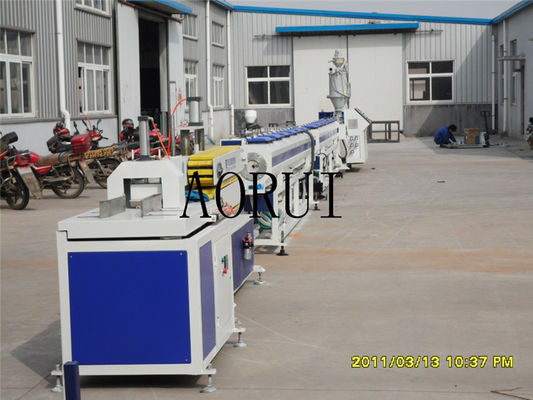

The conical twin screw is specially used for the extruder, matching with different standard of pipe die and auxiliary device; it is used to extrude PVC pipe, foaming and spiral pipe, etc. It adopts vacuum calibrating, water spraying cooling, pedrail hauling, automatic cutting and material discharging. Features of the production lien: automatic temperature controlling, stable performance, and easy operation. It shall be the first choice for PVC pipe production.

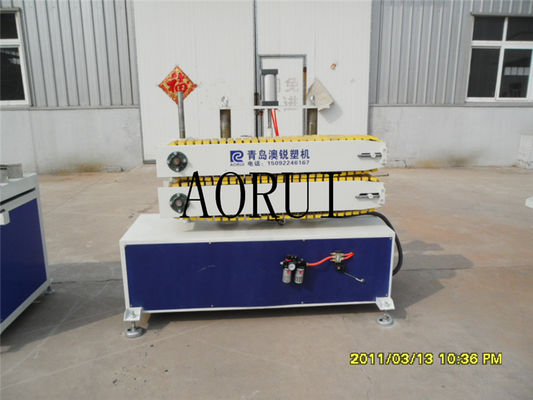

The pipe produced by this line can be widely used for water supply and drainage system. this production line is equipped with SJSZ series conical twin screw extruder or parallel twin screw extruder. The haul-off machine has two-claw, three-claw, four-claw, six-claw, eight-claw types. The cutting machine has saw cutter, no-dust cutter and planetary cutter. We also supply all kinds of PVC dies.
Specifications:
PVC pipe machine Line list
|
Pipe Range |
16-40mm (double) |
20-110mm |
50-250mm |
160-400mm |
315-630mm |
|
Extruder |
SJZ65/132 Or SJZ51/105 |
SJZ65/132 |
SJZ65/132 Or SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
|
Motor(KW) |
37KW or 18.5KW |
37KW |
37KW Or 55KW |
55KW |
110KW |
|
Capacity(KG/H) |
80-180 |
150-250 |
150-350 |
200-360 |
400-600 |
|
Lineal speed(M/min) |
1-15 |
1-12 |
0.3-6 |
0.2-2 |
0.1-1 |
Applications:
1. architectural water supply/drainage pipes, cable laying pipes etc.
2. This unit adopts advanced design concept to ensure the efficient extrusion of PVC powder
3. ensure uniformity of plastic extrusion, high capacity production.
Competitive Advantage:
1. Free training for maintenance personnel;
2. Installation service& commissioning by porfessional;
3. The establishment of user fles, a long-term follow-up service and regular return visits
