Food Package Plastic Sheet Production Line Multilayer Co-Extrusion

Food Package Plastic Sheet Production Line Multilayer Co-Extrusion
Food Package Plastic Sheet Production Line Multilayer Co-Extrusion

Large Image :  Food Package Plastic Sheet Production Line Multilayer Co-Extrusion

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Food Package Plastic Sheet Production Line Multilayer Co-Extrusion

Description
Voltage: 220v/380v ,50/60HZ PVC Sheet Extrusion Line: Professional Design
Type: Plastic Production Line, Plastic Extrusion Line Screw Design: Twin Screw
Product Type: PVC Sheet Process: Extrusion
High Light:

plastic sheet extrusion machine

,

plastic sheet extruder machine

Food Package Plastic Sheet Production Line Multilayer Co-Extrusion







QUICK DETAIL :



1. Screw with special mixing and plasticization function;

2. Coat hanger type die with two throttle design enable to regulate the sheet thickness accurately;

3. ±1οC temperature control make the plasticzing process and sheet thickness control more accurate.

4. Horizontal,vertical or 45οincline type three rollers calenders may be lifted freely;







Description:





   EXTRUDERS A wide range of extruders is available to meet any demand from our customers. Single screw or twin screw, with parallel and conical counter-rotating screws. All extruders have different L/D ratios and drives, to ensure the proper plasticization and throughput. Also, they run synchronized with the downstream equipment.



   DIES Available in single and multi-manifold version, all the dies are manufactured using special steels, thermally treated to improve mechanical properties as well as thermal stress resistance. Multi-manifold dies are manufactured with separate distribution channels, to allow different materials to be extruded. The dies with automatic adjustment of thickness are also available for high production lines.

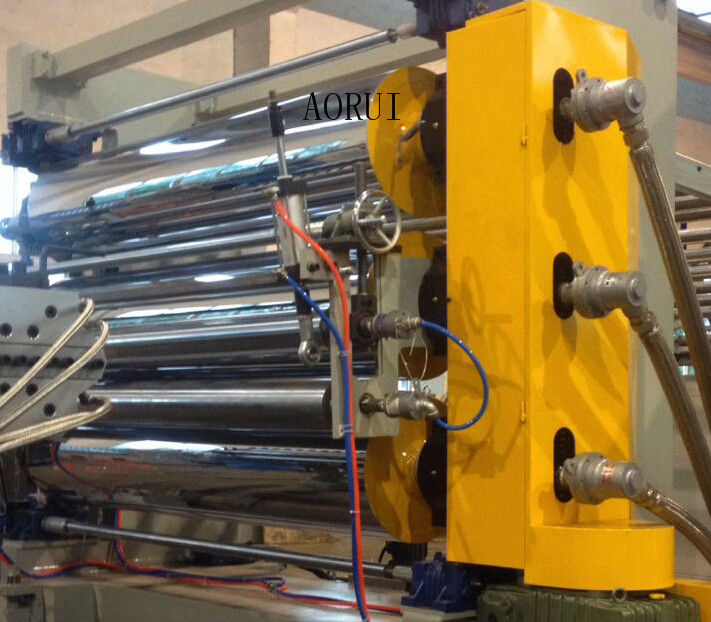

   STABILIZATION AND COOLING CALENDERS The calenders are designed and manufactured to suit the different type of materials and the throughput required as well. Vertical, horizontal and sloped versions are available, with 3 or 5 rolls of different diameter depending on the thickness of the finished product and the output need. Additional cooling rolls are used to ensure the perfect cooling of the finished product for high speed running. Special stabilizing units are also used if required.



   HAUL-OFF UNITS AND ROLLER SETS Separate or built-in haul-off units are available. Featured by pairs of rubber lined rolls, synchronized with the rest of the line to haul the foil at constant speed. A roller set is usually installed between the calender and the hauloff unit, to support the sheet while connecting the two machines. Additional benefit is the gradual cooling of material at ambient temperature, so reducing the inner stress to the minimum. Stationary or telescopic version, the roller sets can be equipped with independent drive or axial cooling fans if required.



   WINDERS Suitable winders for retail or industrial reels up to 2000 mm diameter can be fitted on the extrusion lines upon request. Depending on material and thickness of the finished product, winders are supplied selecting among different types: two-shaft rotating turrets, two or more cantilever shafts or reel holder trolleys. High production lines are additionally equipped with in-line compensators, also called accumulators, for the non-stop production when changing the reel.



   STACKERS In-line units are supplied by KC Plas to stack thick sheets, selecting among different types: • hydraulic version, with lowering platform; • mechanical or pneumatic stacking and tilting systems;







Applications:



1. Sheet thickness shall be regulated by screw and pressing roller;

2. Separate roller to gain even sheet thickness;

3. Exact slicing machine,board length and quantity;

4. Winder with big torque motor,and its speed and tension force adjustable;

5. Automatic metering to set the length of product.









Specifications:



Model

SJP120/21-1500

SJZ85/156-1150

Product width

1400mm

1050mm

Product thickness

0.6-1.5mm

0.5-3mm

Extruder specification

SJP120/21

SJZ85/156

Main motor power

90KW

75KW

Max. Extrusion capacity

350Kg/h

300Kg/h





Competitive Advantage:



1. high output

2. lower cost

3. good quality
