Plastic Pipe Extrusion Line
Created with Pixso.

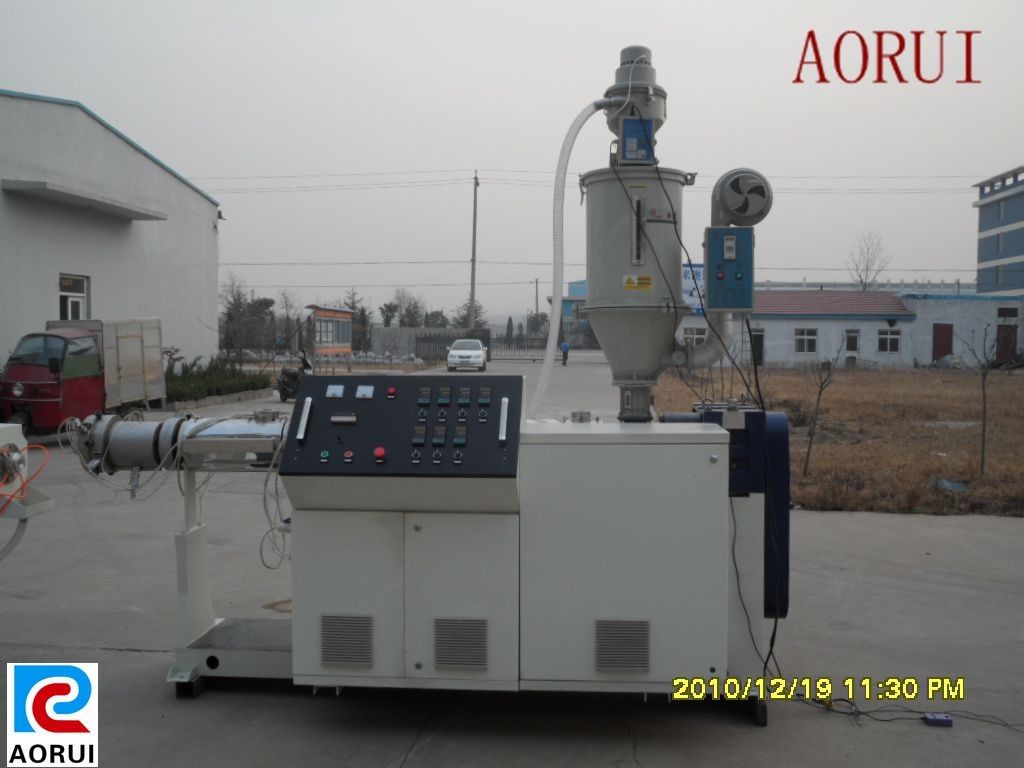

Agricultural Plastic Pipe Extrusion Line , PVC Pipe Making Machine

Agricultural Plastic Pipe Extrusion Line , PVC Pipe Making Machine

Brand Name: AORUI
Model Number: SJ65/28
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Detail Information
Place of Origin:
ShanDong China
Certification:
CE UL CSA
Type:
PVC Pipe Production Line
Application:
Pipe
Model Number:
SJ65/28
Automatic Grade:
Automatic
After-sales Service Provided:
Engineers Available To Service
Place Of Origin:
Shandong, China (Mainland)
Packaging Details:
umigationwood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 sets per month
Highlight:

plastic pipe extruder machine

,

plastic pipe production line

Product Description

Agricultural Plastic Pipe Extrusion Line , PVC Pipe Making Machine ​


Quick detail:

Pipe material: PVC
Power: 50-80Kw
Screw type: SJSZ
Heating zone: 3 zones,
After-sales Service Provided: Engineers available to service machinery overseas
Mould: change molds to produce different pipe products.
Minimum order: one set
Certification: CE,CSA,UL,ISO9001
Port: Qingdao port


Description:

Technics flow as below:
Raw material+additive → mixing → feeding → conical double screw extruder → "one mould four pipes"mould →
vacuum calibration tank →  haul-off → cutting machine → stacker
 1. Easy operation: The four pipes work independently without effect on each other.
 2.Independent vacuum and low power consumption: There is only one vacuum tank of 2.2KW for four pvc pipes.
 3. Chipless cutting: high cutting speed and no chip.
 4. Mobile printing system: controlled by computer with accurate orientation and only need one printer.
 5. The PVC conduit pipe making machine can save place and time.
 6.  If using SJSZ80/156 extruder, Max. pipe diameter can reach 63mm.



Applications:

packaging,decoration,construction ,logistics,gardens,municipal ,administration,traffic,sports,environmental protection,military,home furnishing,children’s toys, bathroom or kitchen cabinet .



Agricultural Plastic Pipe Extrusion Line , PVC Pipe Making Machine 0Agricultural Plastic Pipe Extrusion Line , PVC Pipe Making Machine 1







Specifications:

Extruder

SJ65/28

SJ45/30

Diameter Range(mm)

Φ12-Φ50

Φ6-Φ14

Output

40-75

20-40

Installed Power(KW)

50

35

Main Extruder

SJ65/28

SJ45/28

Diameter Range(mm)

Φ16-Φ50

Φ6-Φ14

Output

40-75

20-40

Producing speed

4-8m per min

Installed Power(KW)

50

35




Main Extruder

SJ65/28

SJ45/28

Diameter Range(mm)

Φ16-Φ50

Φ6-Φ14

Output

40-75

20-40

Producing speed

4-8m per min

Installed Power(KW)

50

35



Competitive Advantage:

1 . gurantee:one year or according to customer’s requirement
2 . advanced technology and better quality
3 . Optional length set and accurate adaption stacker
