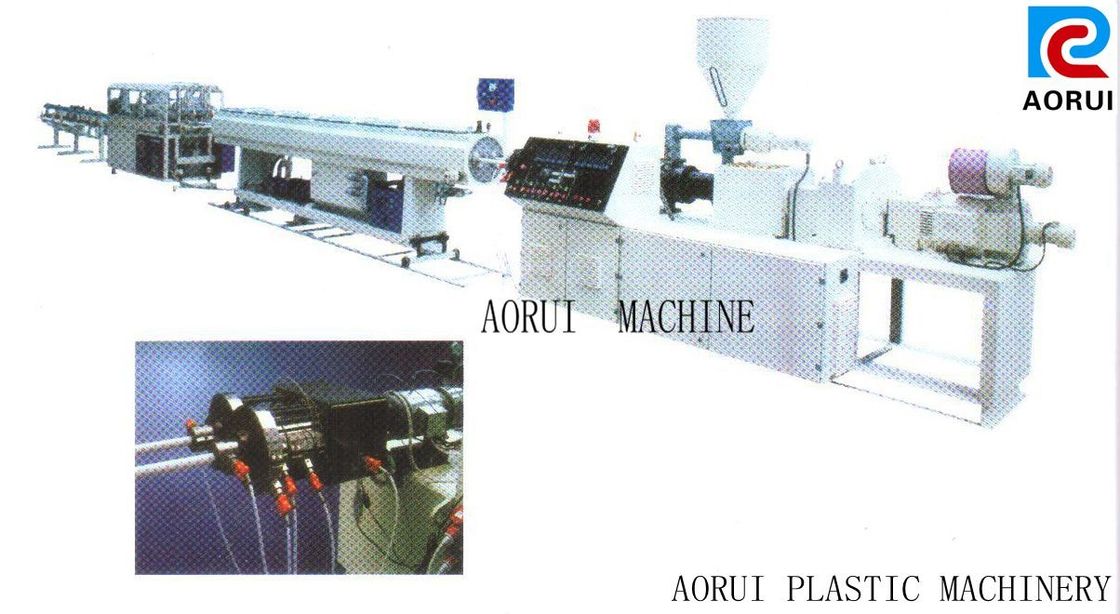

Carbon Spiral Reinforcing Plastic Pipe Extrusion Line , PE Pipe Plastic Extrusion Machine

China Carbon Spiral Reinforcing Plastic Pipe Extrusion Line , PE Pipe Plastic Extrusion Machine supplier

Large Image :  Carbon Spiral Reinforcing Plastic Pipe Extrusion Line , PE Pipe Plastic Extrusion Machine

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ65

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Plastic Processed: PE , PP , PP - R Type: Plastic Pipe Production Line
Screw Design: Single Screw Application: Pipe
Weight: Depends Place Of Origin: Shandong , China (Mainland)

Carbon Spiral Reinforcing Plastic Pipe Extrusion Line , PE Pipe Plastic Extrusion Machine  ​







Quick detail:



1 . The main machine adopts screw specially used for polyolefin.

2 .  it possesses features of high production, good plasticization and stable extruding.







Description:





The main machine adopts screw specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.



1 .  Die head of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guranteed.



2 . Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling colling water tank guarantees the pipe quality and high speed stable extruding.



3 .  Caterpiller of the hauling machine adopts anti-abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.



Specifications:



Main Technical Parameters

MODEL

PVCG-110

PVCG-160

PVCG-250

PVCG-315

PVCG-400

PVCG-630

MATCHED EXTRUDER

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ80/156

SJG92/188

OD RANGE(mm)

50-110

50-160

75- 250

110-315

200-400

315-630

LENGTH OF VACUUM

CALIBRATOR TANK(mm)

6000

6000

6000

6000

6000

6000

HAUL SPEED(m/min)

0.6-6

0.5-5

0.4-4

0.3-3

0.2-2.5

0.2-1.5

INSTALLED POWER(kw)

67

85

95

125

135

255

TOTAL LENGTH9(mm)

17000

18000

20000

20500

28000

30000





Applications:



Pipe inner wall is smooth, it can reduce the blocking phenomena by the residuum in the water, has its own advantages of good flexibility, easy to install and carry, resistance to low temperature and frost crack and service life up to 50 years.





Competitive Advantage:



1 . First class pipe die was designed with many years experience

2 . Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device ;
