Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Plastic Processed: | PVC |
|---|---|---|---|
| Type: | PVC Plastic Extrusion Line | Screw Design: | Double Screw |
| Automatic Grade: | Full Automatic | Application: | Pipe |
| After-sales Service Provided: | Engineers Available To Service | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

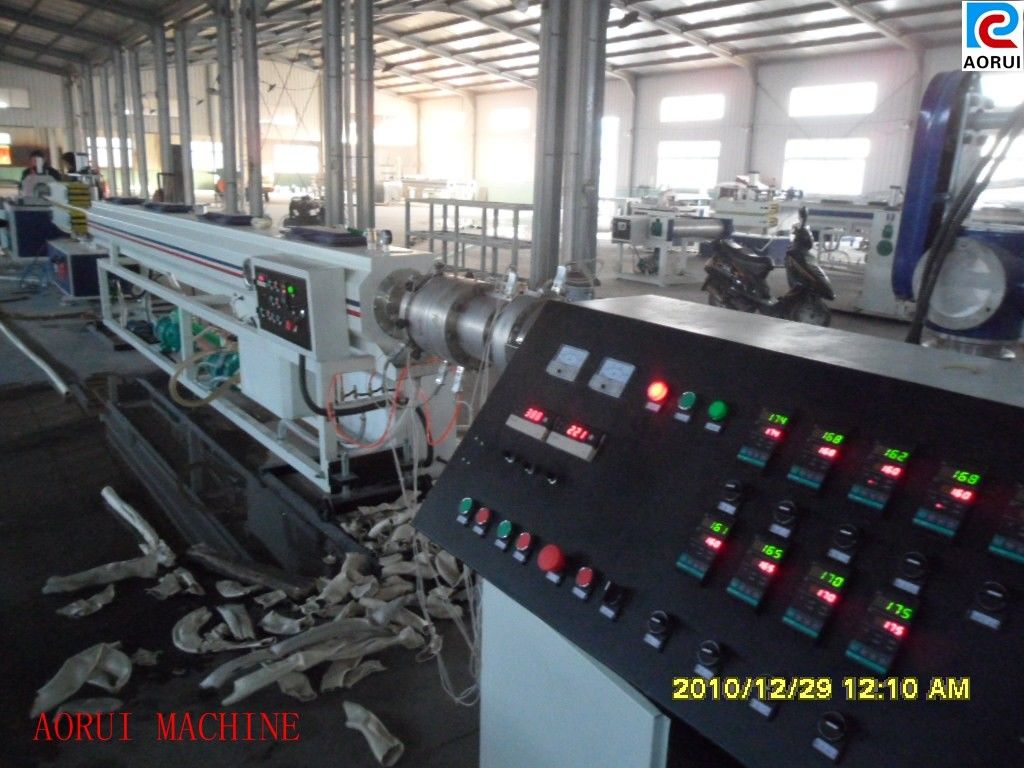

PVC Conduit Pipe Plastic Extrusion Machinery Conical Twin Screw Extruder
Quick detail:
Pipe Material : PVC
Screw design : double screw
After-sales Service Provided: Engineers available to service machinery overseas
mould: change molds to produce different pipe products.
Description:
The working process of PVC conduit pipe making machine:
1 . Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity, max 600KG/H
2 . Diameter: our company succeed in designing and producing the biggest conical twin-screw extruder in the world. Max production diameter reach 630mm.
3 . Auxiliary machine closely meet customer specifications. Nice appearance, automatic control and stable running performance.
This PVC Pipe Extruding Machine is mainly used to produce PVC water pipe; it is of high quality and reasonable design.
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:
It is mainly used to produce PVC conduit pipe.
Competitive Advantage:
1 . Good after-service , spare parts are free
2 . Gurantee:one year or according to customer’s requirement , advanced technology and better quality
