Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Plastic Processed: | PP / PC |
|---|---|---|---|
| Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Single Screw |
| Application: | Sheet | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service | ||
| High Light: | plastic sheet extrusion machine,plastic sheet extruder machine |
||

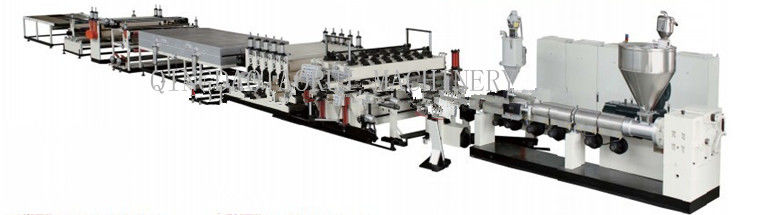

One Screw Plastic Sheet Extrusion Machine , Hollow Grid Sheet Extrusion Line
Quick detail:
Screw design: single screw
Product type : sheet
condition : new
warranty: 1 year
Description:
It is the production line of the most advanced technology, most mature crafts and one of the most stable machines, its comprehensive capacity is 30% higher than the domestic similar equipment. The production line is used to produce ,PC sheet products.
PC sheet has the advantages of insulation and innocuity, environment friendly and recyclable.
PP hollow sheet is widely used in field of turnover box, partitions, electronics, home appliances,luggage, food ,pharmaceutical, pesticide, advertising and decorating etc.
The PChollow sheet is widely used for panels etc.
Applications:
1 . The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled .
2 . High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines because of special design of forming plates.
3 . Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate.
4 . Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.
Specifications:
|
Model |
Extruder |
Motor Power |
Width(mm) |
Thickness(mm) |
Line Speed(m/min) |
Output |
|
SSP-PET120 |
SJ120×30 |
132 |
500-1200 |
0.15-2 |
5-25 |
450 |
|
SSP-PET150 |
SJ150×30 |
185 |
800-2200 |
0.15-2 |
5-18 |
650 |
Competitive Advantage:
1 . high output
2 . energy saving
3 . good plasticity
4 . long working time
