Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width

Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width
Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width

Large Image :  Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156,SJSZ92/188
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month

Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width

Description
Condition: New Screw Design: Double-screw
Brand Name: AORUI Certification: CE/ISO9001
Automatic Grade: Automatic Place Of Origin: Shandong, China (Mainland)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Raw Material: WPC
High Light:

Wood Plastic Extruder

,

Wood Plastic Composite Extruder

Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width



Quick detail:

1.The machine consists main extruder & co-extruder, distributor, calibrator moulding block, cooling rack, haul off, cutter & stacker.

2.Processing performance: available to be easy processed and further processing with the common wood instrument, such as saw, nail, drill, shave; available to directly adhere to other PVC material; available to further heat processing and surface processing.



Description of pvc free foam board machine:

1.Machinery introduction
Produce processing:
raw material mixing--feeding---extrusion----forming and cooling----cooling---hauling--cutting

2.This production line consists of special twin screw extruder, mould, vertical installed 3-roller calendar, and auxiliary machines, our company will offer formulation and full sets of technology of the complete processes. The production line has the advantages of large output, stable extrusion, and high foamed ratio.

3. The barrel and screws of extruder are specially designed for PVC and WPC foamed products extrusion, venting type design, the barrel and screws are bimetallic treatment, effectively reduce the big wearing problem caused by PVC and WPC materials, highly increases the service life of extruder.

4.Material of mould is high quality alloy steel 5CrNiMo forging treatment, the surface of inner flow channel is under chrome plating treatment and polish treatment. The structure of mould adopts imported technology, the die cavity under hard chrome plating treatment and mirror type polishing treatment.

5.The board thickness is easily regulated; mould lips are changeable, so when produce boards of different thickness only to regulate the bolts on mould lips is ok.



Technical parameters of pvc foam board extrusion line:



Brand Name Weier
Model number SJSZ80/156
Suitble resin WPC composite(PE/PP + wood powder)
Line speed 0.2-8m/min
Output 350Kg/h
Total power 145KW
Power supply 380V 3P 50Hz
Delivery detail 55 days
Center height 1000±50mm
After-sales service provided Engineers available to service machinery overseas



Applications:

1.PVC free foam is flat and smooth surface, excellent chemical stability, corrosion resistance, hardness, high strength, anti-ultraviolet (aging), fire retardant (with self-extinguishing), excellent welding performance, reliable insulation , no water, no deformation, the advantages of easy processing, thermal forming material is excellent, can replace part of the corrosion-resistant stainless steel and other synthetic materials


2.By equipping with the printing machine, laminating machine or hot stamping machine, this machine can produce different kinds of artificial wood products, so that this machine has a very wide application range.



Competitive Advantage:

1 . good after-service

2 . spare parts are free

3 . international certification standard.

4 . our engineer help and teach customer to test the machine.

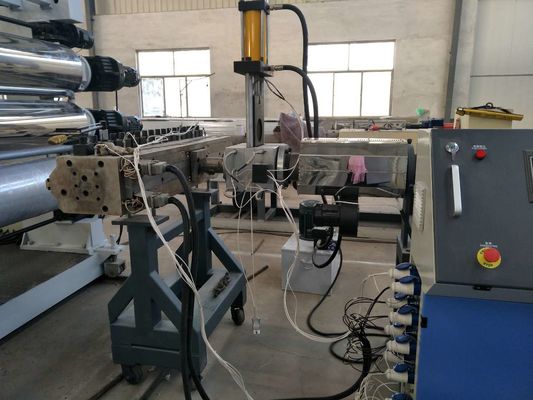

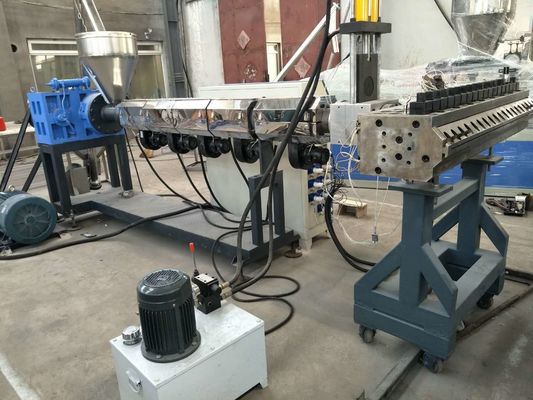

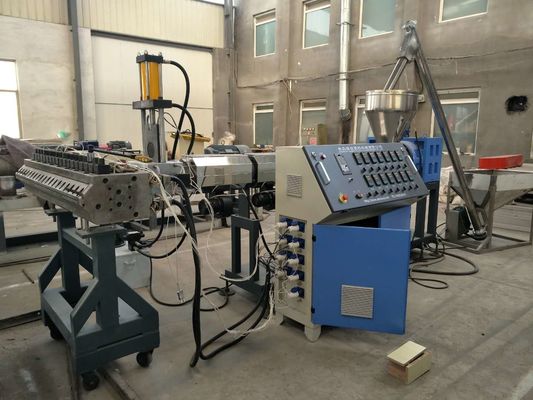

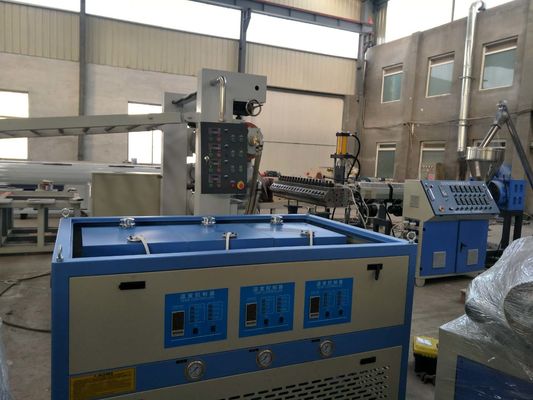

Foam board machine display:

Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width 0



Decorative PVC Free Board Production Line WPC PVC Foam Board Machine 1220mm Width 1
