Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Condition: | New |
|---|---|---|---|
| Screw Material: | 38CrMoAlA | Screw Design: | Single-screw |
| Application: | Pipe | Automatic Grade: | Autmatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

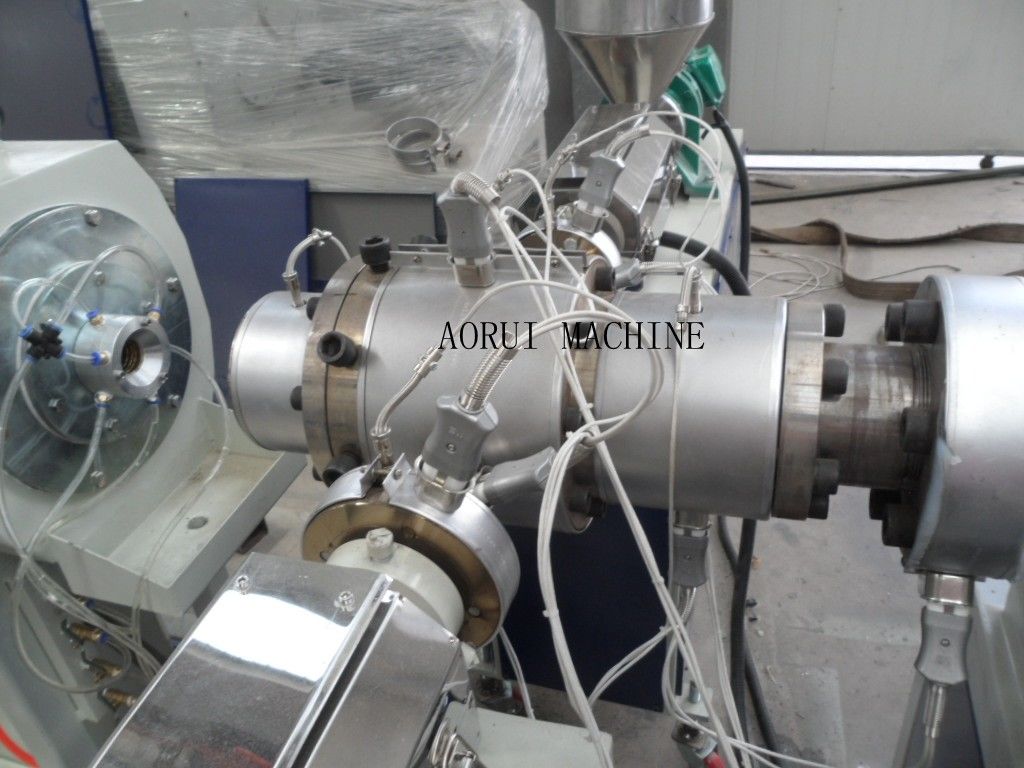

Electrical Conduit Pipe Making Machine Single Screw Extruder Machine
Quick detail:
1 . Machine type:PP/PE elelctrical wire pipe production line,single wall corrugated pipe extruder
2 . Diameter of pipe:20-110mm,75-200mm,110-315mm,315-630mm
3 . Max. production speed:12m/min
Description:
Plastic automatic charger →Hopper plastic dryer→ Single screw extruder → Mould and calibrator → Vacuum forming machine → Haul off machine → Cutting machine → Discharging rack
1 . PP,PE single wall corrugated pipe machine can be used to produce corrugated pipes of PE,PP,PVC,EVA
continuously,as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high
temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
2 . plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.
3 . They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool,
protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Applications:
1 . widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
2 . final pipes are available as protection pipe for wire and cable, drainpipe for washing machine and
air-conditioner, gas hose for vacuum cleaner, and air vent, etc.
3 . Usage:Cable protection,TV, telephone,Glass fiber,Electricity,Control and computer cables,Automobiles,
machines and airplanes,Medical applications,Washing machines
Specifications:
|
Pipe diameter range(mm) |
4.5-9,9-32,32-50 |
|
Model |
SJ45,SJ50,SJ65,SJ90,SJ120 |
|
Field |
Automotive wiring harness,electrical threading,lamps line protective casing,air-conditioning washing machine hose |
|
Mould block pairs |
50 pairs or according to customer’s requirement |
|
Linear speed(m/min) |
6-10,8-12,8-15 |
Competitive Advantage:
1 . Shorter Lead Time
2 . Guarantee:1 year for whole mould
3 . Professtional design team & Skilled Mould maker
