Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design: | Double Screw | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(L*W*H): | 29*4.2*2.6m |
| Pay Terms: | 30% T/T 70% T/T Or L/C | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
ISO CE Double Screw Extruder PVC Garden Pipe Plastic Extrusion Equipment
Quick detail:
1 . output:60-700kg/h
2 . ISO&CE standard
3 . test before delivery
Description:
The working process of PVC conduit pipe making machine:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
1. The pvc hose pipe machinery is suitable to U-PVC,C-PVC,M-PVC,HDPE,LDPE,PPR,PP,ABS pipe extrusion
2. plastic pipe with various diameter and wall thickness, from 16-800mm.

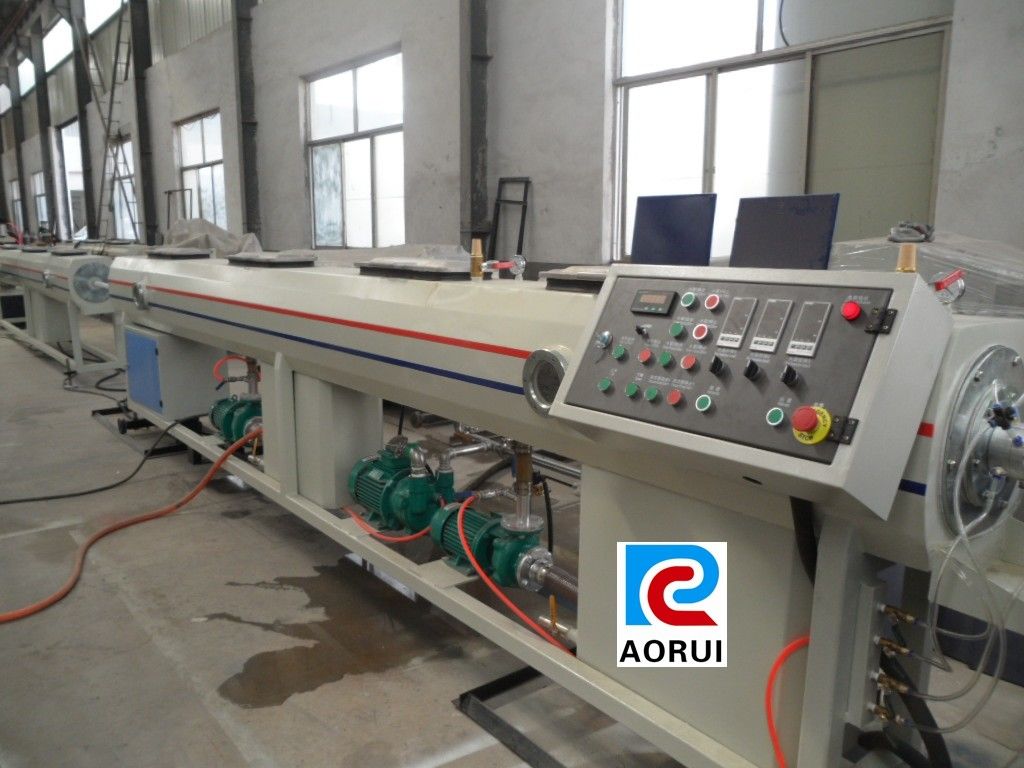

3. the pvc hose garden pipe machinery mainly includes single/twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing PVC pipe.
4.adoped the Simens, ABB, Schneider famous brand electric components and high quality extruder alloy screw and barrel
5. Supply technical service, formula guide and staple raw material purchase
6.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:
1 . It is mainly used to produce PVC conduit pipe.
2 . After-sales Service Provided: Engineers available to service machinery overseas
3 . mould: change molds to produce different pipe products.
Competitive Advantage:
1 . energy saving
2 . good plasticity
3 . long working time
