Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Capacity: | 300kg/h |
|---|---|---|---|
| Mode Of Extruder: | SJ-65 | Application: | Pipe |
| Material: | HDPE . LDPE . PE . PP | Automatic Grade: | Fully Automatic |
| Voltage: | 380V,3ph,50Hz | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
PP / PE Plastic Drainage Pipe Production Machinery , PP / PE Single Screw Extruder
Quick detail:
1 . Diameter:4.5~50mm
2 . Motor power(kw):15kw
3 . Motor:Siemens
4 . Inverter:ABB
Description:
This line adopts our own SJ series single screw extruder equipped with the Siemens PLC controlling system.
This production line is used for continously producing PP,PE,PVC single wall and double wall corrugated pipe.
Plastic single wall corrugated pipe is resistant to high temperature,corrosion and abrasion,very flexible.
Die head of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guranteed.
Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling colling water tank guarantees the pipe quality and high speed stable extruding.
It can realize the whole line automatic controlling of high capacity , stable extruding with the suitable changing of different units could realize the production job of PE-RT,PEX ,PB pipe.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|

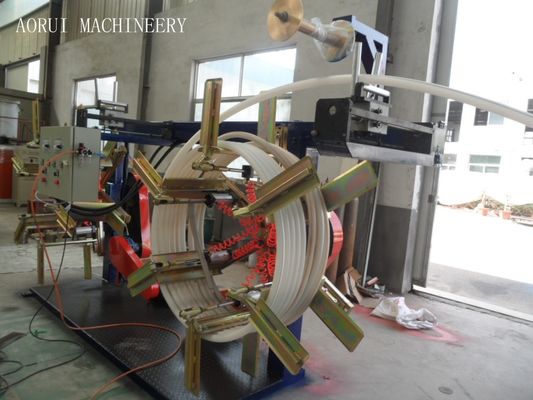

Winding Type |
Automatic/Manual |
||
Applications:
1 . Caterpiller of the hauling machine adopts anti-abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.
2 . New generation auto dust-free cutting blade realizes smooth cutting surface, high precision and low noise.
3 . They are widely used in field of auto wire,electric wire protection,lamp circuit protection,tubes of air condition and washing machine etc.
Competitive Advantage:
1 . high capacity
2 . IOS9001 : 2000
3 . have many years experience
