Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Capacity: | 300kg/h |
|---|---|---|---|
| Type: | Plastic Production Line, Plastic Extrusion Line | Mode Of Extruder: | SJ-65 |
| Application: | Pipe | Material: | HDPE . LDPE . PE . PP |
| Forming Mould Quantity: | According To Customer's Request | ||
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||

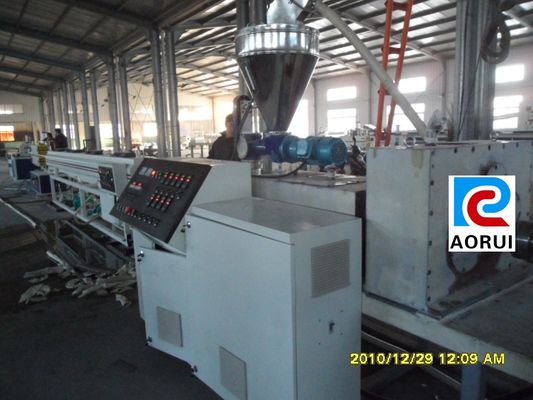

HDPE / LDPE Plastic Corrugated Pipe Extrusion Line , HDPE Plastic Production Machine
Quick detail:
1 . material:PP/PE/HDPE/LDPE
2 . pipe size is according to customer's requirement.
3 . used in water , having high extruding velocity and effective plasticization.
Description:
Plastic single-wall corrugated pipes produced by this single wall corrugated pipe machine have many features such as high intensity, good flexibility,high temperature resistance, resistant to corrosion and abrasion, etc. They has large market which are widely used in the fields of auto wire, electric thread-passing pipes,protective pipes of lamps and lanterns wire, circuit of machine tool, tubes of air conditioner and washing machine and so on.
Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
1 . Different type of main machine can be chosen in accordance with different material.
2 . The die head for single wall corrugated pipe is specially designed for wide use scope, simple forming and even pipe wall.
3 . The corrugator forming machine is optimum designed for high running speed and stable forming.
4 . The cutting machine is specially designed for corrugated pipe for high precision cutting and no-damage to crest.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Applications:
1 . This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.
2 . Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc
3 . Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Competitive Advantage:
1 . high capacity
2 . It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
5 . have many years experience
