Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Plastic Processed: | PVC |
|---|---|---|---|
| Pipe Size(mm): | 8-50 | Type: | Plastic Production Line, Plastic Extrusion Line |
| Screw Design: | Double Screw | Weight: | Depends |
| Total Power (kw): | 26-36 | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
Double Screw PVC Fiber Reinforced Soft Pipe Extrusion Line , PVC Pipe For Irrigation
Quick detail:
1 . The main machine adopts screw specially used for polyolefin.
2 . ISO&CE standard
3 . test before delivery
Description:
The working process of PVC conduit pipe making machine:
The whole equipment configuration: Mono-screw lining extrusion system, cooling device, haul-off, braiding machine, mono-screw outer extrusion system, cooling device, automatic stacking system.
This line is the newly-developed product of our company, which is mainly used to produce liquid-conveying PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc. So the final products of this line are widely used in conveying pipes for air, water, coal gas, oil and other liquid and gas.

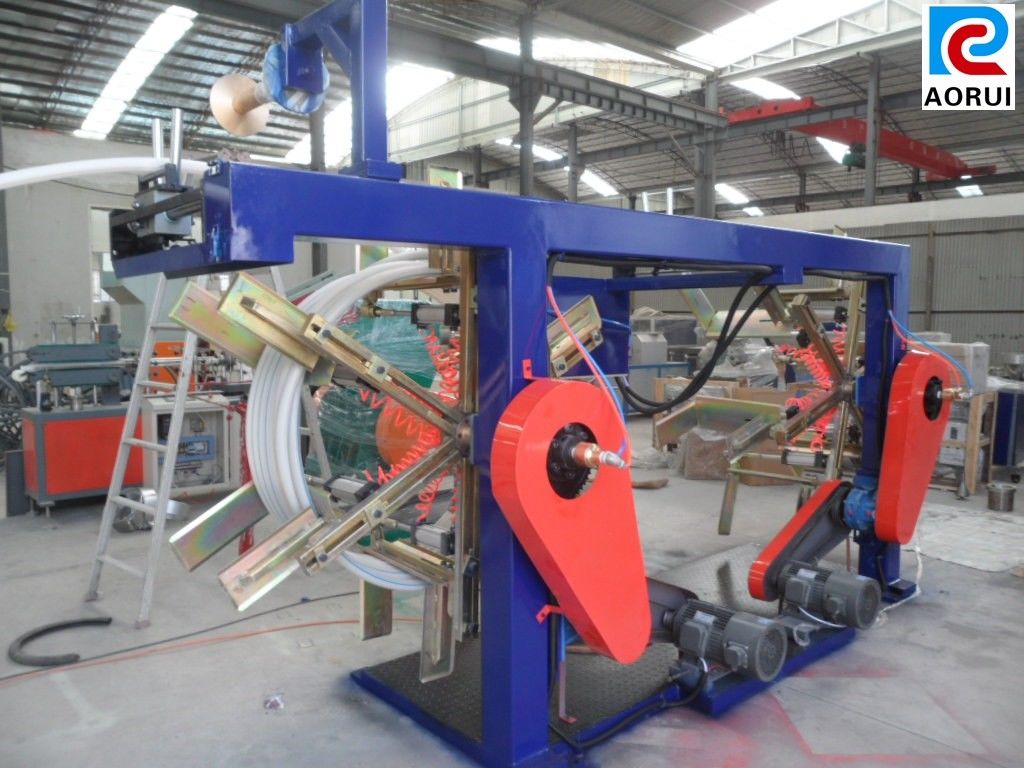

This line consists of extruders, spraying water tanks, hauling-off units, fiber-winding units, Coiler, etc. And it features with reasonable configuration, special structure, easy operation, convenient maintenance, high continual production capacity, etc, so it gets warm welcome and trust from clients.
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:
It is mainly used to produce PVC conduit pipe.
Achieving fast extruding and winding uniform reactive, can configure corresponding mould can also manufacture various specifications of soft special-shaped steel tubes.
The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrgation , civil application ( solar energy water heater , gas - jar ) , also it can be used in irrgating garden and lawn .
Competitive Advantage:
1 . First class pipe die was designed with many years experience
2 . energy saving
3 . good plasticity
4 . advanced technology and better quality
