Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Plastic Processed: | HDPE |
|---|---|---|---|
| Type: | Plastic Pipe Production Line | Screw Design: | Single Screw |
| Application: | Pipe | Sizing Sleeve: | 40Cr Under Quenching And Tempering |
| Reduction Gearbox: | Hard Tooth Surface Reducer | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

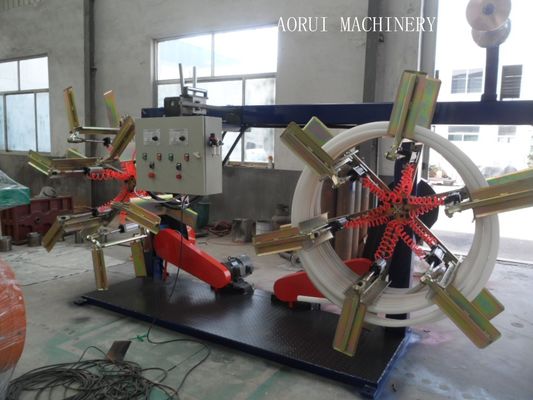

HDPE Carbon Spiral Reinforcing Pipe Production Line , HDPE Pipe Extrusion Machinery
Quick detail:
1 . The main machine adopts screw specially used for polyolefin.
2 . high speed and high quality
3 . longlife and service
Description:
1. Dedicated single-screw extruder is especially used for producing polyolefin products, and the specialized separating type mix-melting screw possesses features of high-speed extrusion and plasticization, etc.
2. The pipe die head is designed in standard, and the reasonable flowing path ensures smoothness of the inside and outside walls of the pipe. The way of assembling the die head is designed according to the client’s requirement, which saves much room.
3. Both scientifically designed copper spiral sizing sheath and the powerful inhaling vacuum device contribute to high extrusion of the pipes.
4. The tank is made of stainless steel, and automatic controller is used to control the liquid level. The peculiar spraying nozzle brings about effective cooling and the motor ensures longitudinal movement and three-dimensional adjustment in terms of the directions of upward, downward, left and right.
5. The special sizing and cooling mode enable the production line to produce pipes whose diameter range is from 25mm to 200mm, at a speed of 0.8to 1.5 meters per minute.
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:
These pipes are characterized by high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution, etc. They can be processed and bent into long pipes with various radians. Owing to these advantages, they are very popular with clients engaged in many fields.
Pipe inner wall is smooth, it can reduce the blocking phenomena by the residuum in the water, has its own advantages of good flexibility, easy to install and carry, resistance to low temperature and frost crack and service life up to 50 years.
Competitive Advantage:
1 . 15 years professional experience
2 . High efficient service
3 . Competitive Price
