Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design: | Double Screw | Inverter: | ABB |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(L*W*H): | 30M*2.5M*4M |
| Screw&barrel: | 30CrMoAlA | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
Drainage Pipe Plastic Extrusion Machinery , PVC Conical Twin Screw Extruder Machine
Quick detail:
1 . output:60-700kg/h
2 . ISO&CE standard
3 . pipe diameter:16-800mm
Description:
The working process of PVC conduit pipe making machine:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
PVC pipe production line is mainly used to produce PVC pipes with various diameters in the aspects of agricultural irrigation, water supply, drainage and wire conduit etc. The extruder adopts frequency conversion.The screw core adopts automatic system to control the temperature.The screw adopts specially designed super cone structure. The output can be increased by 50% and 20-30% power saving. Hardened reducer can continuous trouble-free operation. All units integrated design,the host and the auxiliary work at the same time. It’san ideal line for production of pipes with high efficiency, high performance, high stability.
Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:

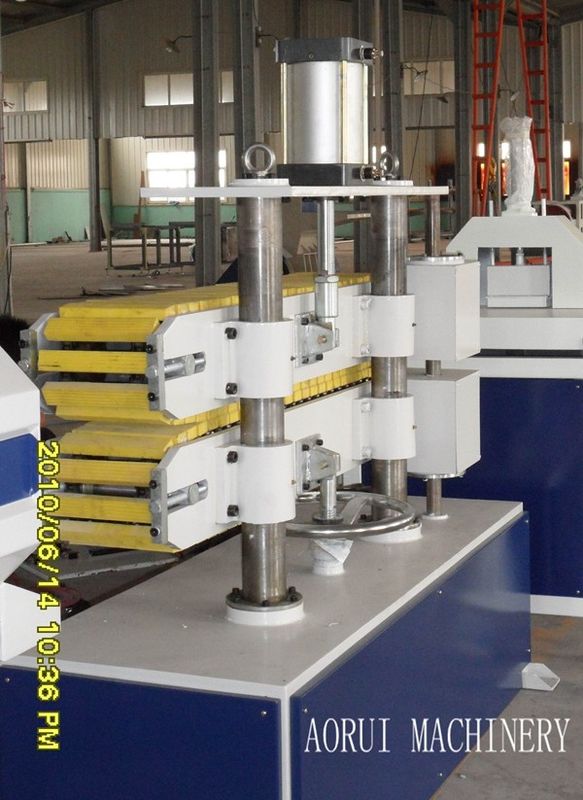

1 . This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc.
2 . The extruder and the haul-off adopt the quality AC frequency conversion control device.
3 . The vacuum pump and motor adopt the famous brand.
Competitive Advantage:
1. Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity, max 600KG/H
2. Diameter: our company succeed in designing and producing the biggest conical twin-screw extruder in the world. Max production diameter reach 630mm.
3. Auxiliary machine closely meet customer specifications. Nice appearance, automatic control and stable running performance.
