Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Certification: | CE&ISO9001 |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service | Plastic Processed: | PP/PE |
| Dimension(L*W*H): | 20mx2.5mx2.2m | Screw Design: | Single Screw |
| Voltage: | 220V 380V 415V 440V 600V | Condition: | New |
| High Light: | plastic sheet extrusion machine,plastic sheet production line |
||

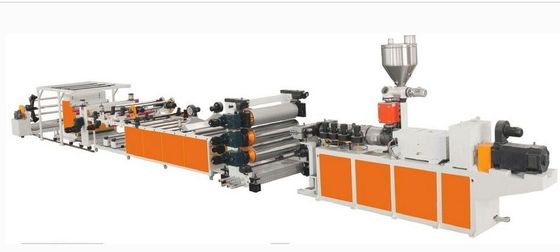

PP Plastic Decoration Sheet Production Line , PP / PE Sheet Extrusion Machinery
QUICK DETAIL :
1. This unit uses the latest harden Gear Reducer with the strength of high torque and low noice. Automatical cooling system can make the gear and shaft have enough lubricating and cooling.
2. Double seperate metal mixing screw, high efficiency, which has excellent plasticizing and mixing ability. Especially suitable for recycled material and broken material.

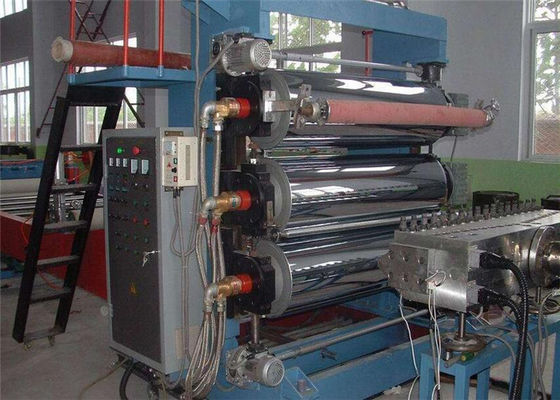

3. Three roller Horizontal type installation. No need to change roller when move frame. It can save changing time and improve efficiency. The barel use special technology . Drive seperatly and run smoothly which can make out plate with perfect surface.
4. This unit is also suitable for PP/ PE(microcellular)/PS/ABS sheet extrusion, especially for the recycled material, widely applied in the manufacturing of suitcase, golf bag,office equipment, package material and medical with a high level of compatibility.
Description:
1. Wooden Plastic Production Line=Conical Twin Screw Extrusion Machine+Vacuum Forming Table+Traction Machine+Cutting Machine+Rack
2. Advantages:
*Using special designed screw and barrel for extruder.
*Extruder stand-alone or two mixed directly extrusion,second extrusion after granules, save power and space.
*With high yield,stable extrusion pressure.
*Screw design shear force is small,easy to cut teh wood fiber material.
*Screw and barrel using inlay and spray corrosion alloy, greatly extend the service life.
3. This production line adopts our unique wood and plastic technology and formula. It can extrude wood-plastic plates with PE/PP+wood powder. The WPC PP PE products are widely used in up-market car interior decoration, decoration board, advertising board, base material and decoration material for hotels, resturants and entertainment venues.
Specifications:
|
Model |
Unit |
TYJB-75 |
TYJB-90 |
TYJB-110 |
|
Material applied |
PP,PS,PE |
|||
|
Width of sheet |
mm |
≤600 |
≤750 |
≤1100 |
|
Thickness of sheet |
mm |
0.2-1.6 |
0.2-2.0 |
0.2-2.0 |
|
Extrusion capacity |
kg/h |
60-100 |
100-150 |
150-200 |
|
Diameter of screw |
mm |
75 |
90 |
105 |
|
Installed capacity |
kw |
75 |
90 |
120 |
Competitive Advantage:
1 . high output
2 . energy saving
3 . long working time
