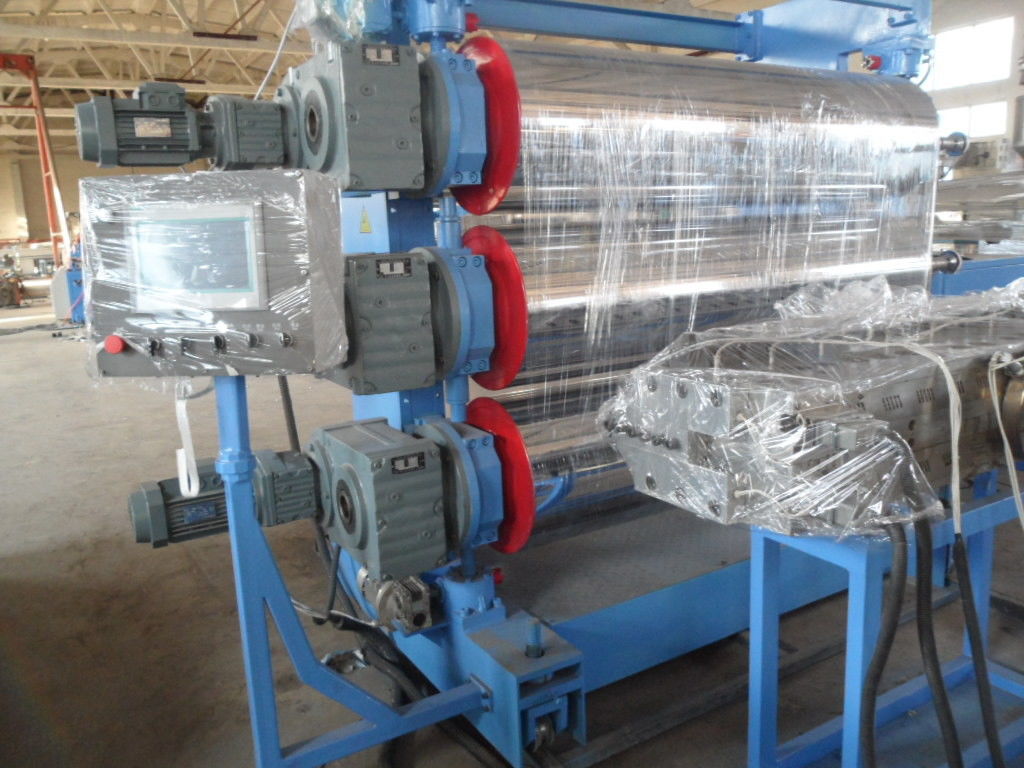

Multi - Layered Composite Sheet Production Machinery Single Screw Extruder

Multi - Layered Composite Sheet Production Machinery Single Screw Extruder
Multi - Layered Composite Sheet Production Machinery Single Screw Extruder

Large Image :  Multi - Layered Composite Sheet Production Machinery Single Screw Extruder

Product Details:
Place of Origin: China
Brand Name: AORUI
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Multi - Layered Composite Sheet Production Machinery Single Screw Extruder

Description
Certification: ISO, ISO & QC Material: PP , PE
Type: Sheet Plastic Production Line Screw Design: Single Screw
Size: Different Width And Thickness After-sales Service Provided: Engineers Available To Service
Dimension(L*W*H): 16.5*3.5*3
High Light:

plastic sheet extrusion machine

,

plastic sheet production line

Single Screw PP / PE Single Layer , Multi - Layers Composite Sheet Production Machinery





QUICK DETAIL :



1 .  It has such characteristics and high impact - resistance

2 .  THICKNESS : 0.6 - 10 MM WIDTH : 3000MM (UNDER )




Description:






1. The screw bolt is designed to have special function of raw material blending and high plasticization, making the melting the plastic more effective and increasing the extrusion product with uniform color.

2. Advanced and electric hydraulic device is adopted in the net-changing part of the die to ensure the convenient operation and high productivity.

3. Special design of double throttling control in the T-shape die to achieve more exact adjustment for the sheet thickness.

4. The temperature controlling system adopts SCR system to ensure the temperature tolerance within +/- 1°C,controlling the thickness and flatness of the sheet in the molding process.

5. The diameter of the embossing roller can be changed from 290mm to 350mm. Built-in double circular cooling system can control the temperature of the embossing roller to produce the flat sheet with uniform thickness.

6. Microcomputer control system of the slice cutting set to make the more exact length and output quantity of the plastic sheets.







Applications:

1 . Such as wire plate , enviironment protection material , venting equipment , semiconductor equipment , etc .



2 . The operation fully reflects the man-machine engineering principle, it can make the function more entirely and the operation more simple.














Specifications:



  Model

Unit

TYJB-75

TYJB-90

TYJB-110

  Material applied

PP,PS,PE

  Width of sheet

mm

≤600

≤750

≤1100

  Thickness of sheet

mm

0.2-1.6

0.2-2.0

0.2-2.0

  Extrusion capacity

kg/h

60-100

100-150

150-200

  Diameter of screw

mm

75

90

105

  Installed capacity

kw

75

90

120



Competitive Advantage:

1 . have many years experience

2 . Production scope: single layer , double layer , three layer , five layer

3 . such as machinery , electrical , sanitary ware , packing etc.
