Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Plastic Pipe Extrusion Line , PVC Twin Pipe Extrusion Production Line , pvc Double Screw Pipe Making Machine

Description
Condition: New Dimension(L*W*H): According To Model
Automatic Grade: Full Automatic Type: Plastic Pipe Production Line
Application: Pipe Material: PVC
Certificate: CE ISO9001 Voltage: 380V 50HZ
High Light:

plastic pipe extruder machine

,

plastic pipe production line

Plastic Pipe Extrusion Line , PVC Twin Pipe Extrusion Production Line , pvc Double Screw Pipe Making Machine





Quick detail:



1. pvc pipe making machine consists of conical twin-screw extruder, vacuum forming equipment, Haul-off machine, cutting machine, stacker and other components, with good stability, and produced high, easy to operate, reliable.

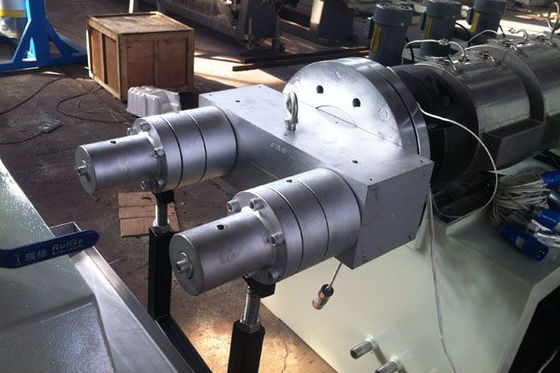

2. The production line can produce water supply and drainage pipe, the material is U-PVC, C-PVC, large diameter PVC. Configure the secondary shunt mold, with a low temperature. Extrusion in low pressure; water membrane sizing, to ensure high-speed pipe production.







Features of PE pipes:



1. PVC plastic pipe production line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.



2. Flow chart:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack



3. Application of Our PVC Pipe Extrusion Line:

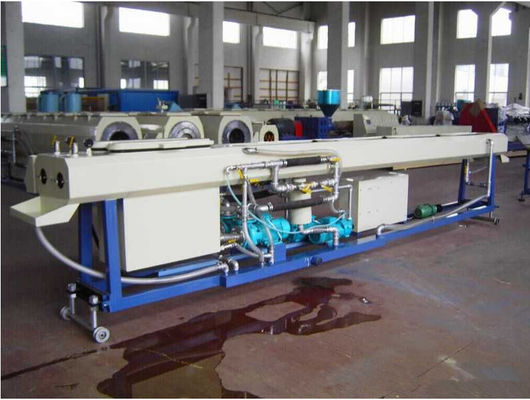

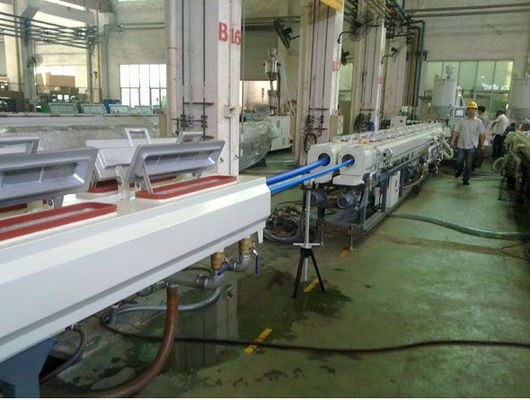

This PVC pipe production line is mainly used to produce U-PVC/C-PVC pipes of water supply and water drainage. This line consists of conical twin screw extruder, vacuum calibration table, haul off machine, pipe cutting machine and stacker.











Main Technical Parameters

Extruder Model SJSZ-51X105 SJSZ-65X132
Accessory Machine GFDP-63 GFDP-63
Pipe Diameter(mm) 16-63mm 16-63mm
Production Speed 12m/min 12m/min
Max output 160kg/h 220kg/h







Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life

3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
