Product Details:
|
| Condition: | New | Production Capicity: | 200kg/h |
|---|---|---|---|
| Place Of Origin: | Shandong , China(Mainland) | Screw Design: | Single Screw |
| Plastic Processed: | PP PET | Power: | 37kw |
| Voltage: | 110-460v | Raw Material: | PET Flakes |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

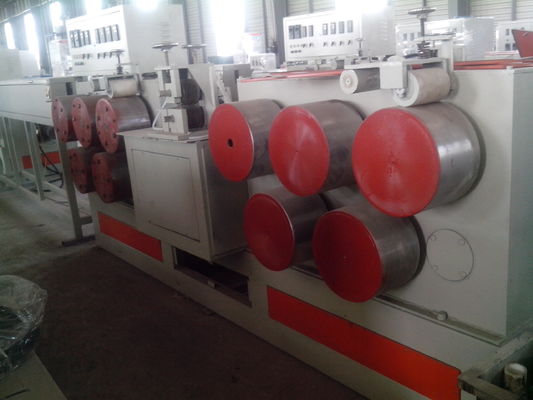

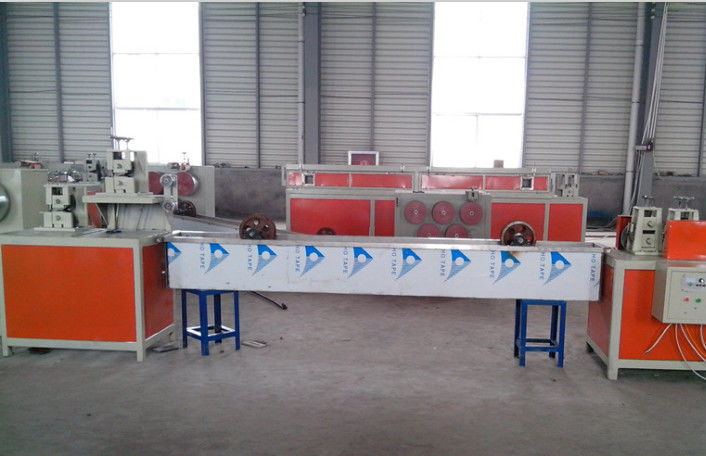

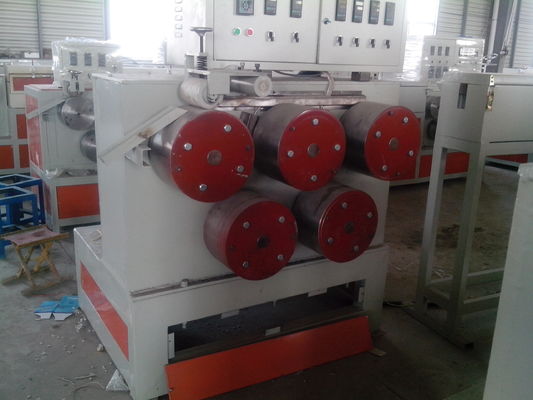

PET PP Automatic Strapping Machine Recycle PET Straps Extrusion Line
Quick detail:
1.PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
2.Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps; Stainless steel cooling trough with four thermo treatment processes displaces the traditional one; Haul off rollers with bigger size ensure the quality of products; New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; Laser embossing roller makes clear and even patterns.
Description
1.Polyester pet drawing equipment is our company on basis of the absorption of foreign advanced production technology and proven research ,then produced a set of units, currently in the country have had very good reputation.In addition the unit can be used for pet drawing materials, and can be used polyethylene PE, polypropylene PP, PVC PVC, PA and other plastic production drawing, also can produce various specifications of wire products.
2.Production of round wire mesh wire can be used for, such as industrial, net wire, wire brush, broom, bag wire harness; flat yarn can be used for woven geotextile, woven, high sand window wire, wire ropes, etc.
The main technique parameter
| Model | SDD65 | SDD80 | SDD45/65 | SDD45/80 | SDD/80 |
| Extruder diameter(mm) | 65 | 80 | 45/65 | 45/80 | 80 |
| Productivity(kg/h) | 20-35 | 20-35 | 30-60 | 30-80 | 30-60 |
| Winding mode | Mechanical or manual | Mechanical or manual | Mechanical or manual | Mechanical or manual | Mechanical or manual |
| Haul off multiple | 5-10 | 5-10 | 3-5 | 3-5 | 6-10 |
| Weight(kg) | 28 | 40 | 46 | 56 | 50 |
| Production line length(m) | 12x2.8x1.6 | 14x2.8x1.6 | 12x3.8x1.6 | 15x3.8x1.6 | 18x3.2x1.6 |
| Product specifications(mm) | 10-22 | 10-22 | 10-22 | 10-22 | 10-22 |
| Total weight(t) | 2 | 2.6 | 3 | 3.8 | 3.6 |
Competitive Advantage:
1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material humidity less than 40PPM and condensation polymerization;
2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying;
3--Special designed extruder screw for PET production, bear the better performance of material separating and mixing. Automatic material feeding provide the smooth environment for the PET strap production.
4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen changing, and without material leakage;
